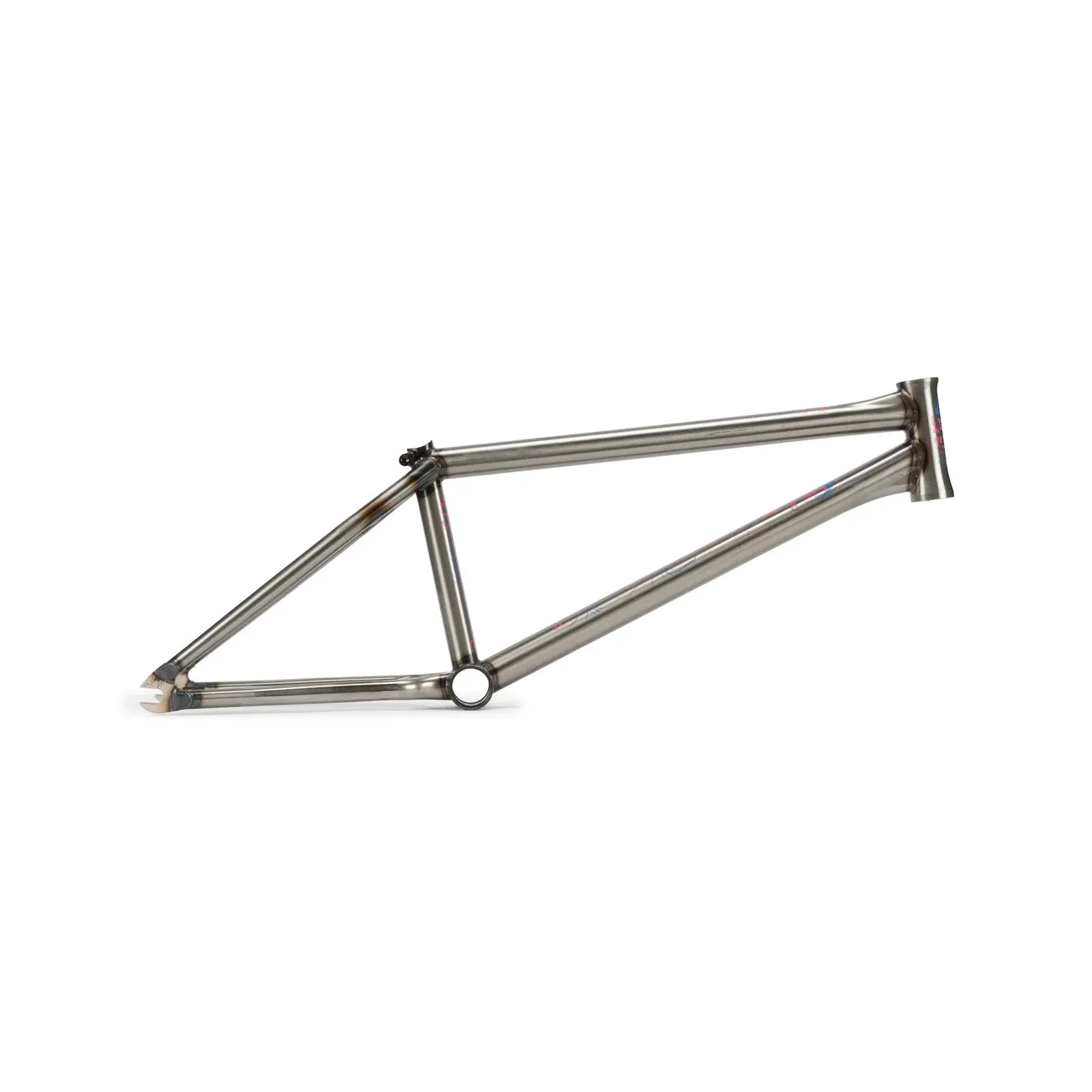

One of the most progressive BMX frames we’ve ever made, Dan Kruk's signature Network Frame has been tested in the lab and in the streets for over 4 years now to prove it can handle the technical ferocity and all-out war Dan put’s his bike through. Dan wanted a shorter 12.5” chain stay and updated geo from the Battleship Frame, making the Network one of the most responsive and agile BMX frames to date. Utilizing our invest casted yoke for improved stiffness and tire/sprocket clearance, the Network Frame really is a frame from the future. Now featuring updated artwork.
Includes our Lifetime Guarantee.
PLEASE NOTE: This frame has a Translucent paint finish which means you can see the welds and anything else through the paint. It is generally not as durable as solid paint and can scratch easier. Additionally, the steel can develop a sort of spider-web marks which of course you can see through the translucent paint, this is all part of the effect in a way, but we are just making you aware it. If this isn't for you, we'd suggest a non-translucent paint finish.
Tubing: butted, Japanese seamless 4130 crmo tubing
Bottom bracket: 74mm mid size, cnc machined and heat-treated
Head tube: 127mm cnc machined and heat-treated, integ. H/set
Dropouts: laser cut and cnc machined 6mm, heat-treated 4130 crmo, perfect shape for pegs and hub guards
Brakes: brakeless frame
Weight: 2.54kg (5.60lbs) -20.5" tt
Special features:
• 127mm tall head tube for less spacers with an uncut fork
• investment cast seat stay bridge
• one of the most responsive and technical bmx frames ever made
• super short 12.5" chain stay
• unique investment cast chain stay yoke for improved tire and sprocket clearance
• oversized 20.5mm seat stays for increased stiffness and durability
• larger 1.8mm welding at head tube
• wider rear triangle allows clearance for a 2.4" tire
• hydroformed top tube and down tube for superior strength and stiffness
• 6mm seat clamp bolt
• includes a lifetime guarantee
Geometry
- Top tube length: 20.5", 20.8" or 21.1"
- Chain stay length: 12.4" – 12.8" - optimized For 12.5" w/ 25-9
- Head tube angle: 75.75°
- Seat tube angle: 71°
- BB height: 11.85"
- Standover height: 9.15"
