Product Details
＋
- Floating 600 Ohm audio output
- Auxiliary relay contacts provided
- LED indication of unit activation
PRODUCT DETAILS

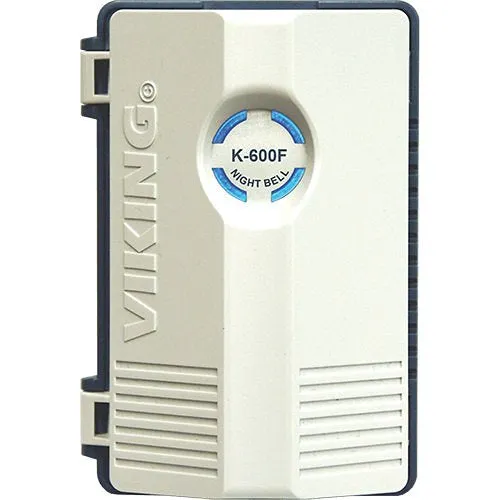

The K-600F eliminates the installation of multiple bells, relays, and power supplies, wherever night bells, loud ringing, or emergency tones are required. The K-600F provides an existing paging amplifier with a pleasant electronic warble tone each time it receives ring voltage from an analog PABX/KSU extension. The K-600F requires no external power supply and provides a floating 600 ohm audio output. Paging In and Out terminals are provided to allow automatic switching between paging and warble audio when used with an existing paging installation. A set of N.O. / N.C. relay contacts are provided that switch in cadence with the ring signal. Volume and tone controls are also provided.
Main Features
- Floating 600 Ohm audio output
- Auxiliary relay contacts provided
- LED indication of unit activation
- Provides tone over existing paging amplifiers
- Wall mount housing: (2) #6×3/4 panhead screws included
- Powered by ring signal – no external power supply required
- Terminals for automatic switching between paging audio and warble tone
- Connects directly to ringing analog PABX/KSU stations with RJ11 or terminals
