Product Details
＋
HMX6500R-400

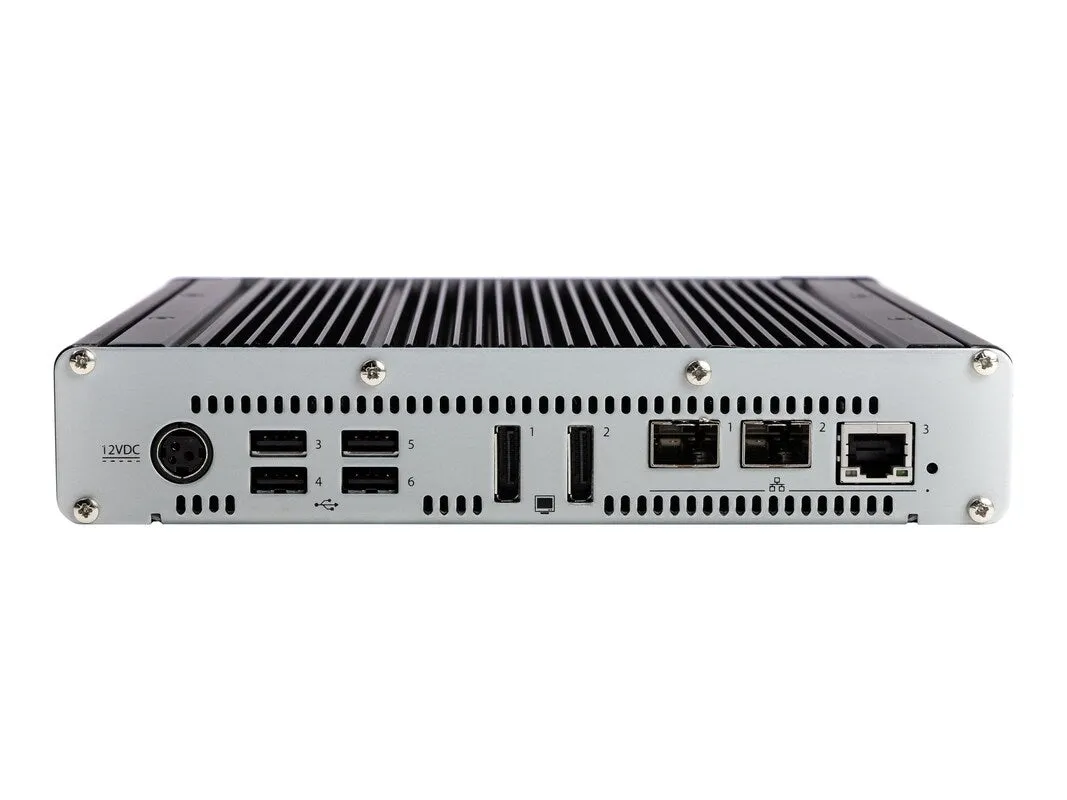

The Vertiv Avocent HMX 6500R High Performance KVM System receiver delivers KVM and VM access without requiring additional hardware or compromise on KVM functionality. By incorporating Virtual Desktop Infrastructure (VDI) protocols into the receiver, the HMX 6500R allows all operators to access all machines in a more efficient way. It is ideal for demanding applications such as broadcast, control rooms and collaborative environments.
| GENERAL INFORMATION | |
|---|---|
|
Manufacturer
|
Vertiv
|
|
Manufacturer Part Number
|
HMX6500R-400
|
|
Brand Name
|
AVOCENT
|
|
Product Line
|
HMX
|
|
Product Model
|
HMX6500R-400
|
|
Product Name
|
HMX 6500R | High Performance KVM Receiver (HMX6500R-400)
|
|
Packaged Quantity
|
1
|
|
Product Type
|
KVM Extender Receiver
|
| TECHNICAL INFORMATION | |
|
Connectivity Technology
|
Wired
|
|
KVM Technology
|
Digital
|
|
Number of Local Users Supported
|
1
|
|
Device Type
|
High Performance KVM
|
| VIDEO | |
|
Maximum Video Resolution
|
2560 x 1600
|
| INTERFACES/PORTS | |
|
Network (RJ-45)
|
Yes
|
|
PS/2 Port
|
No
|
|
USB
|
Yes
|
|
Digital Audio/Video
|
Yes
|
|
DVI
|
No
|
|
Headphone
|
Yes
|
|
Microphone
|
Yes
|
|
HDMI
|
No
|
|
VGA
|
No
|
|
DisplayPort
|
Yes
|
|
Proprietary Interface
|
Yes
|
|
Number of HDMI Ports
|
0
|
|
Number of VGA Ports
|
0
|
|
Number of Network (RJ-45) Ports
|
2
|
|
Number of PS/2 Ports
|
0
|
|
Number of USB Ports
|
4
|
|
Number of DVI Ports
|
0
|
| POWER DESCRIPTION | |
|
Input Voltage
|
12 V DC
|
|
Power Consumption
|
20 W
|
| PHYSICAL CHARACTERISTICS | |
|
Rack Height
|
1U
|
|
Form Factor
|
Rack-mountable
|
|
Receiver Height
|
11.20"
|
|
Receiver Width
|
9.60"
|
|
Receiver Depth
|
5.70"
|
|
Receiver Weight (Approximate)
|
5.50 lb
|
| MISCELLANEOUS | |
|
Platform Supported
|
|
|
Country of Origin
|
United Kingdom
|
|
TAA Compliant
|
Yes
|
| WARRANTY | |
|
Limited Warranty
|
2 Year
|
