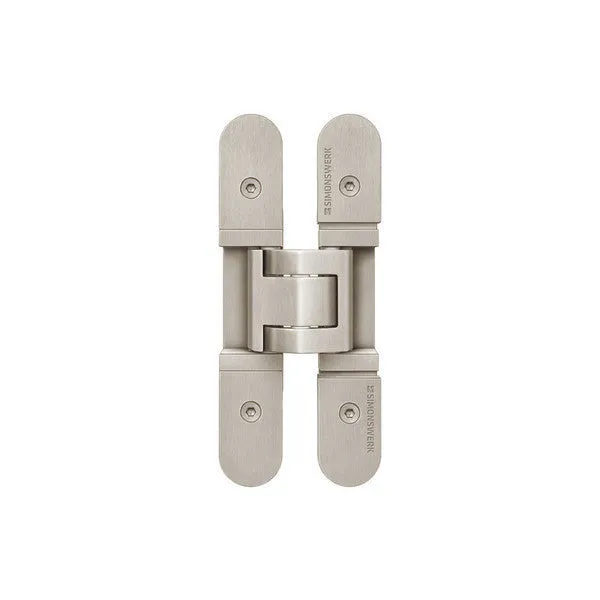

TECTUS® TE 527 3D Concealed Hinge

TECTUS enables the optimal integration of flush doors in straight line and flush surfaces for contemporary clean designs.

The SIMONSWERK TECTUS TE 527 3D concealed hinge is completely hidden for flush doors with wood, steel or aluminum doors and frames.

The three-dimensional adjustability and maintenance-free slide bearing technology of the TE 527 3D hinge system is for use with high-quality commercial doors.

Features

Manufactured of mild steel for flush commercial doors
180° opening angle without pinching or damage during opening and closing
For doors up to 264 lbs with 2 hinges installed
EASILY adjustable in 3-Dimensions
Maintenance-free slide bearings
For wood, metal, or casing frame installation
Fire Resistance, Smoke Resistance, Soundproof, Forced Entry Resistance

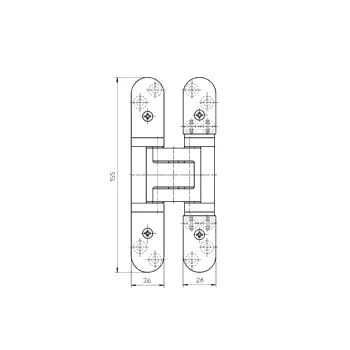

Specifications

Minimum door thickness: 1-3/8"

Height: 6.1" [155mm]
Width: Frame & Leaf: 1.02" [26mm]
Depth: Frame: 1.3" [33mm] & Leaf: 1.48" [37.5mm]

Material: Zinc-plated mild steel

Available Finishes:

SSL: Stainless Steel Look
Other finishes available.

More Information

*Use with routing template

*UL Listed: 3-HOURS

Use hinge to provide power and data to door leaf

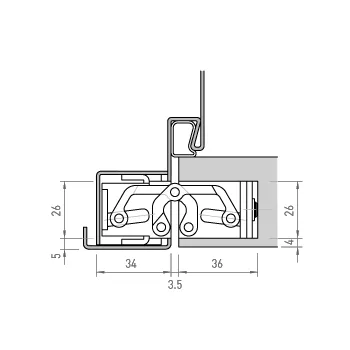

For TE 527 3D installation in steel frames you will need:

One (1) Receiver per hinge.

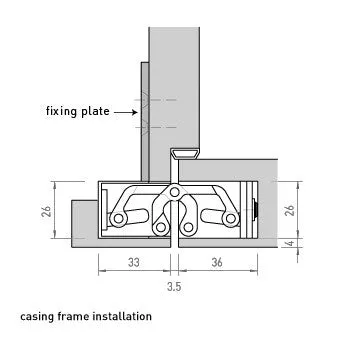

For TE 527 3D installation in casing frames you will need:

One (1) Fixing Plate per hinge

For installation in aluminum frames please

This is a made to order, non-stock item. Orders are non-cancellable and non-returnable. Please review the details to ensure you are ordering the correct hardware.
