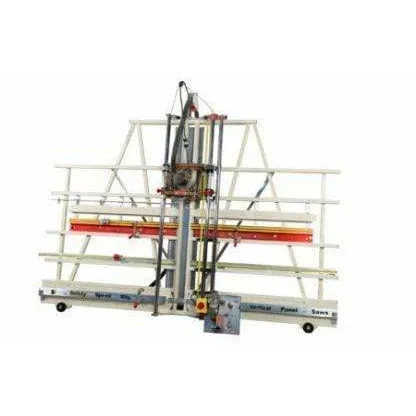

Safety Speed SR5U Panel Saw and Router Combo

This machine is perfect for cabinet shops, composite panel fabrication and other applications where both panel sizing and panel routing are required functions. Ask about our V-grooving package.

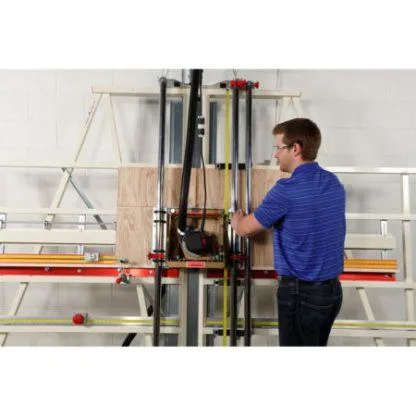

A big brother to the SR5, the SR5U is equipped with a heavier duty worm drive motor, a 3 ¼ Hp router motor and aluminum material rollers. Photos are shown with a , and which are optional accessories.

Standard Equipment

3 Hp, worm driven saw motor.
3 ¼ Hp, heavy-duty router motor.
10 ft. welded steel frame.
Chrome-plated 1 ¾” guide tubes.
8 Nylatron roller bearing system.
Adjustable vertical and horizontal rulers.
Quick change from vertical to horizontal cutting.
Thin material pressure guard 4 material clamps.
Integrated dust collection bonnets.
Solid aluminum material rollers.
Enclosed counterweight system.
Adjustable floating router head.
MID-WAY FENCE™ flip stop.
2 blind dado stops.
Extended warranty.
TUV certified to UL/CSA standards.

Specifications

Weight	589 lbs
Dimensions	124 × 17 × 92 in
Max. Crosscut	62'/1575mm
Max. Rip Cut	Unlimited
Max. Cut Thickness	1 3/4'/45mm
Cut Accuracy, Straight and Square	1/64'/.4mm
Saw Blade Diameter	8'/210mm
Motor	13 amp, 120V
Router Motor	15 amp, 120V
Frame Length	120'/3050mm
