Product Details
＋
Specs

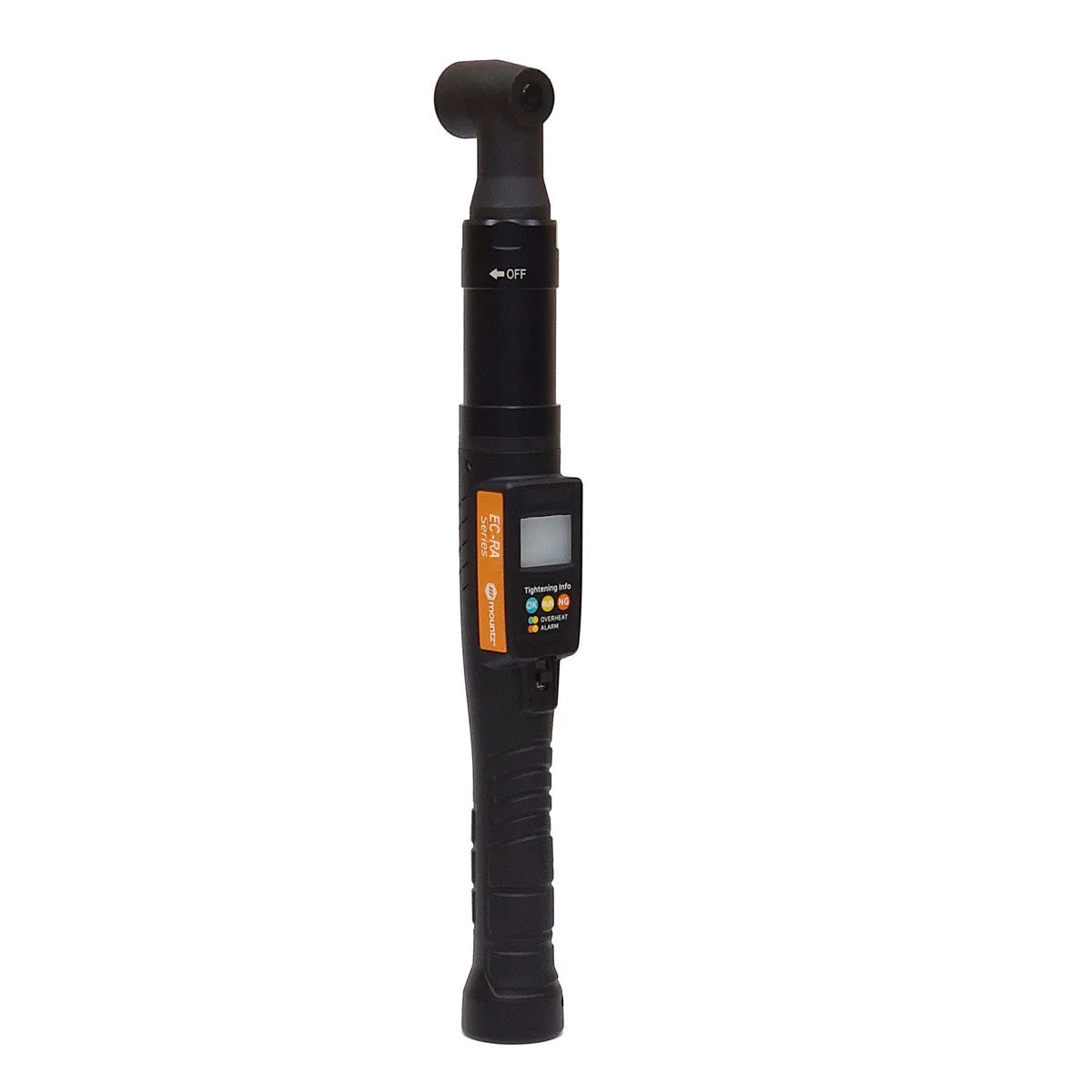

Model:
EC40000-RA
Item #:
313174
Drive Size:
1/4" F/Hex
American:
0.7 - 3.5 lbf.in
S.I.:
0.1 - 0.4 N.m
Tool Weight:
2.8 lbs.
Tool Length:
13.5
Minimum Adjustable RPM Range:
150
Maximum Adjustable RPM Range:
2000
Grip Dia:
2"
The EC is an all-in-one smart electric screwdriver solution for process reliability and efficiency with fastening strategies and precision torque accuracy. The screwdriver safeguards against fastening failures for quality-minded engineers. The error-proofing system eliminates manufacturing risks and product defects. Easily program the controller with fastening workflows and torque tolerances for each fastener in the sequence. The smart screwdriver system provides capabilities to record and store the torque & fastening data. A single DC control system replaces up to 15 power tools. The electric screwdriver system includes free product software - no annual licensing required—savings of $2K. Achieve a robust manufacturing process using this intelligent electric screwdriver system.
- Error-proof the fastening process and eliminate manufacturing risks and prevent product defects.
- Achieve multiple fastening tasks with one smart electric screwdriver system.
- Programmable fastening sequences and workflows. Create standardized fastening workflows.
- Data collection - record and store torque and fastening data.
- Collect and store essential quality data in a repository for data analytics, regulatory compliance, and traceability.
- Clean room compliant (ISO14644-1 2015 Class 5)
- A single electric screwdriver fastening system replaces up to 15 power tools.
- Free product software — no annual licensing required — savings of $2K.
- Monitor fastening processes and tasks.
- The screw counting function ensures that all screws are accounted for during the assembly process.
- Operational for thread tapping and prevailing torque applications.
- Swiss DC servo motor provides precise, accurate, and repeatable torque control.
- Low maintenance with an extended life cycle.
- Requires
- Low inertial force provides smooth reaction-less operation with little G force to assembled parts.
- The drive on a right-angle tool is mounted at a 90-degree angle to the tool body.
- ECD-4000 Controller has digital I/O signals for interfacing with a machine & PLC interface for line control monitoring techniques.
- ECD-4000 Controller: Program up to 15 presets and 15 models, consisting of up to 20 steps for each model.
- ECD-4000 Controller memory: collect and save all fastening data on an SD memory card.
- ECD-4000 Controller provides fastening torque data analysis (Standard Deviation, Mean, Average, CP, CPK ).
- ECD-4000 Controller is fully programmable via the touch screen.
The EC electric screwdriver is supplied with the standard 3 meter length cable. The driver cable connects the EC-Series electric screwdriver to the .
