Product Details
＋
1 Year General Warranty.

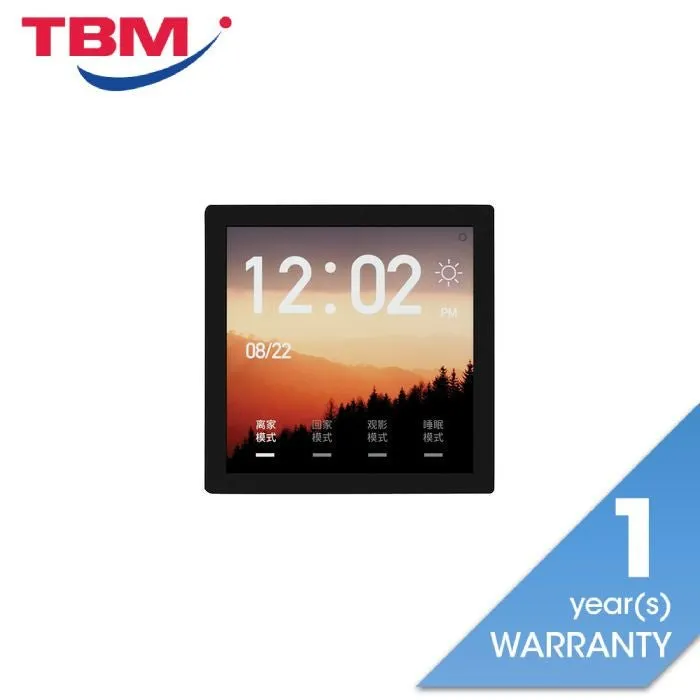

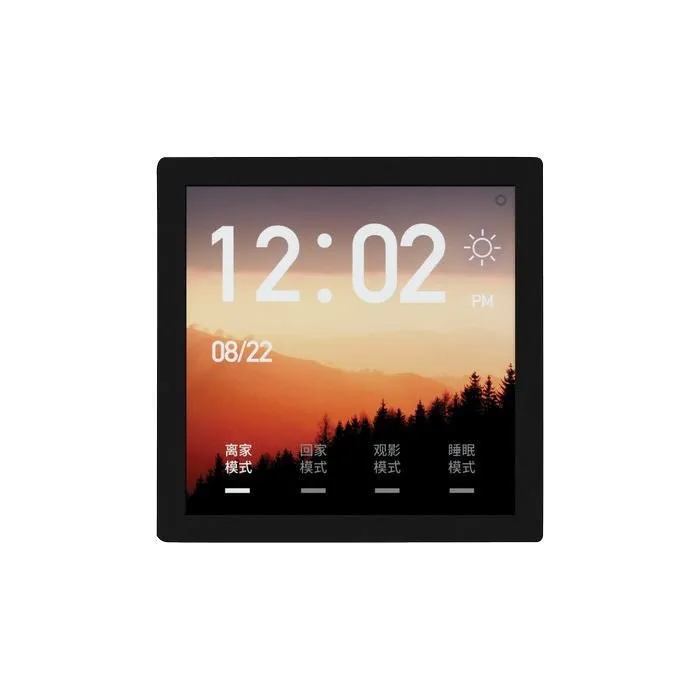

- 4'' High definition touch screen
- Integrated with loT gateway and smart switch
- Set and enable kinds of scenarioes through this
switch pane - Control music ,lighting, curtain,HVAC and others
General
- Model Number
- LS226WH- LS228WH
- Installation
- In-wall concealed with 86 back box(standard )
- Operating Temperature
- -5~45
- Operating Humidity
- 5~90％
- Network
- Wi-Fi 2.4GHz/ Ethernet
- Power Consumption
- <20W
- Interface
- Live/Neutral
- Light1
- Light2
- Light3 wire in
- Button
- Customizable scene-switch
- Screen
- 4” inch touch screen
- Resolution
- 480 x 480
- CPU
- 4 Core ARM
- Power Supply
- AC 100-240V 50/60Hz
- RAM
- 2GB
- Oprating System
- Linux
- Bluetooth
- Yes (Bluetooth 4.2)
- Speaker
- Yes
- Microphone
- Yes
Construction
- Color
- White/ Black
- Dimensions
- Outside dimension: 86*86*11mm
- Whole product dimension: 86*86*36mm
- Weight
- 90g(panel only)
- Casing
- Flameresistant PC
