Advantages:
This 5 channel amplifier is suitable for all kinds of constant voltage led dim cct rgb rgbw rgbcct controller.
It can enlarge the led controller signal through the amplifier to receive the PWM ( pulse width modulation ), and output the signal to the load, then it can make the same effect with the controller.
Theoretically, one controller can connector with thousands of this 5 channel amplifier, and can make the same effect.

Specification:

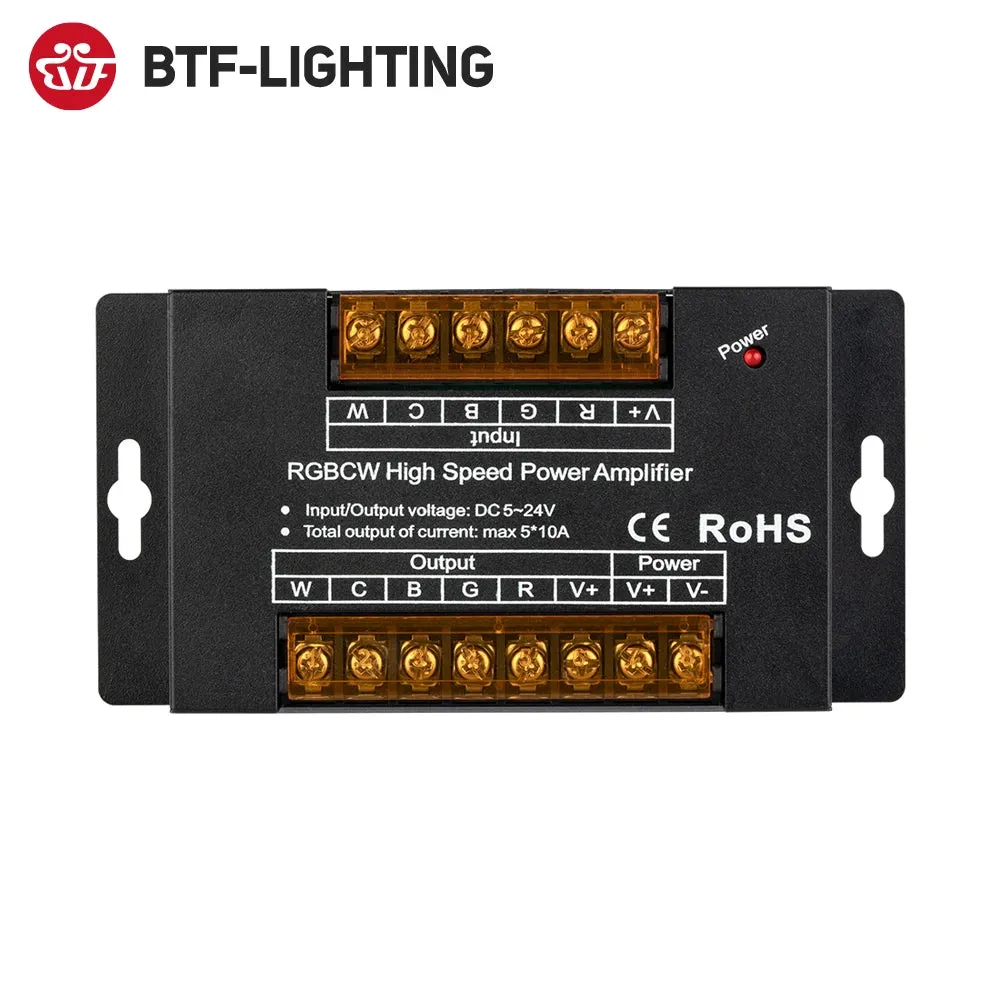

Product Name: Aluminum RGBCCT Amplifier.
Input/Output Voltage: DC5V-24V.
Output Current: 10A/Channel.
Total Output of Current: Max 50A.
Switching Rate: 10Mbps.
Output: 5 Channel.
Connection Mode: Common Anode.
Output Power: 5V<250W, 12V<600W, 24V<1200W.
Work Temperature: -20°C ~ 60°C.
