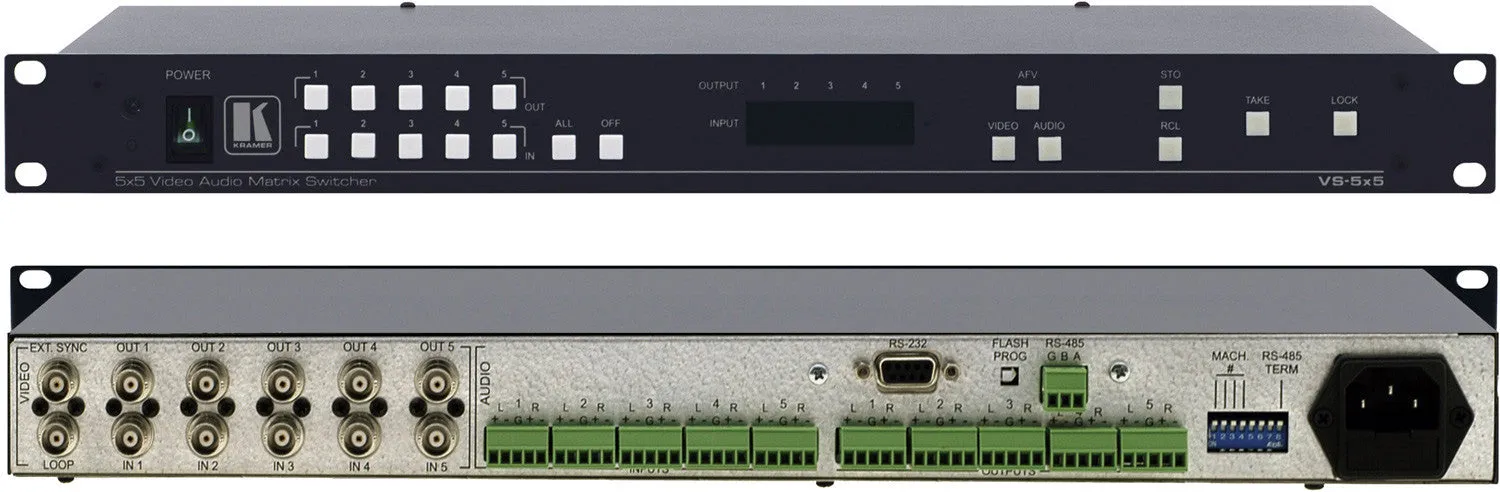

Kramer VS-5X5 -- 5x5 Composite Video & Balanced Stereo Audio Matrix Switcher

The VS-5x5 is a high performance matrix switcher for composite video and unbalanced stereo audio signals. Switching during the vertical interval ensures glitch-free switching with genlocked sources.

• Bandwidth - 70MHz (-3dB) fully loaded.
• Control - Front panel, RS-232 (K-Router Windows - based software is included), & RS-485, IR Remote (included).
• Front Panel Control Lockout.
• Take Button - Execute multiple switches all at once.
• Memory Locations - Store multiple switches as presets to be recalled and executed when needed.
• Audio Gain Level Controls - Input and output via RS-232.
• Audio Breakaway Switching.
• Vertical Interval Switching.
• Switching Synchronization - Synchronize either to external reference or the incoming video.
• Looping Sync Input.
• Worldwide Power Supply - 100-240V AC.
• Standard 19" Rack Mount Size - 1U.
