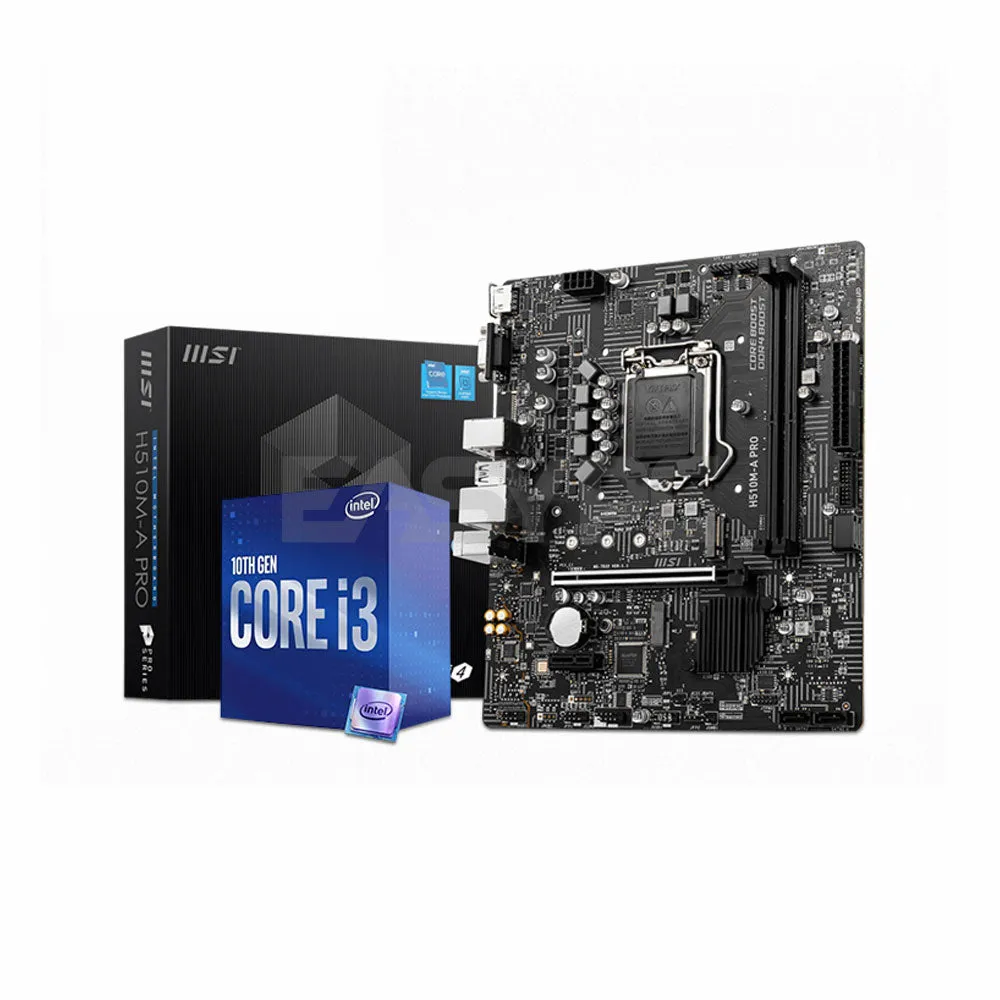

Intel Core i3-10100 Processor MSI H510-A Pro Motherboard

Product Specification:

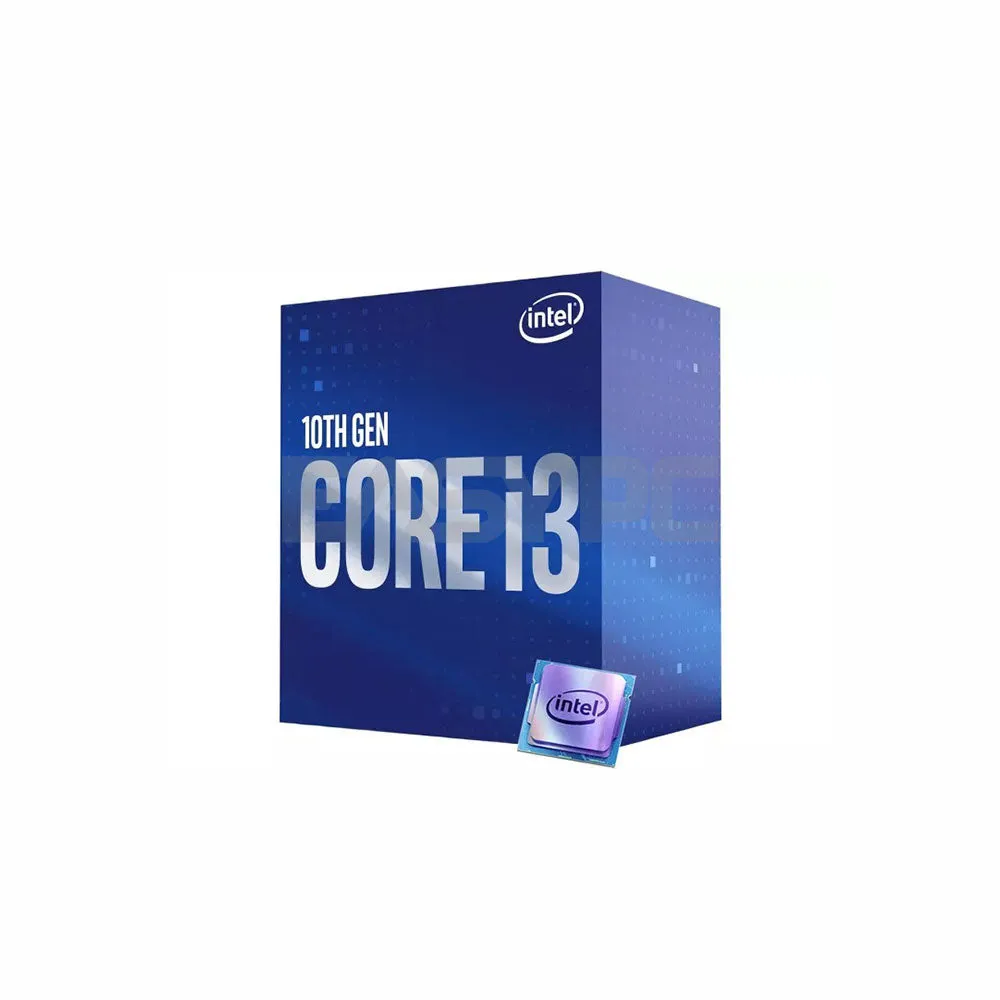

Intel Core I3-10100 Comet Lake Socket 1200 3.60GHz Processor

·       CPU Specifications

·       # of Cores: 4

·       # of Threads: 8

·       Processor Base Frequency: 3.60 GHz

·       Max Turbo Frequency: 4.30 GHz

·       Cache: 6 MB Intel® Smart Cache

·       Bus Speed: 8 GT/s

·       Intel® Turbo Boost Technology 2.0 Frequency‡: 4.30 GHz

·       TDP: 65 W

·       Memory Specifications

·       Max Memory Size (dependent on memory type): 128 GB

·       Memory Types: DDR4-2666

·       Max # of Memory Channels: 2

·       Max Memory Bandwidth: 41.6 GB/s

·       ECC Memory Supported : No

·       Processor Graphics

·       Processor Graphics : Intel® UHD Graphics 630

·       Graphics Base Frequency: 350 MHz

·       Graphics Max Dynamic Frequency: 1.10 GHz

·       Graphics Video Max Memory: 64 GB

·       4K Support: Yes, at 60Hz

·       Max Resolution (HDMI)‡: 4096 x 2160@30Hz

·       Max Resolution (DP)‡: 4096 x 2304@60Hz

·       Max Resolution (eDP - Integrated Flat Panel)‡: 4096 x 2304@60Hz

·       DirectX* Support: 12

·       OpenGL* Support: 4.5

·       Intel® Quick Sync Video: Yes

·       Intel® InTru™ 3D Technology: Yes

·       Intel® Clear Video HD Technology: Yes

·       Intel® Clear Video Technology: Yes

·       # of Displays Supported : 3

·       Device ID: 0x9BC8

·       Expansion Options

·       Scalability: 1S Only

·       PCI Express Revision: 3.0

·       PCI Express Configurations ‡: Up to 1x16, 2x8, 1x8 2x4

·       Max # of PCI Express Lanes: 16

·       Package Specifications

·       Sockets Supported: FCLGA1200

·       Max CPU Configuration: 1

·       Thermal Solution Specification: PCG 2015C

·       TJUNCTION: 100°C

·       Package Size: 37.5mm x 37.5mm

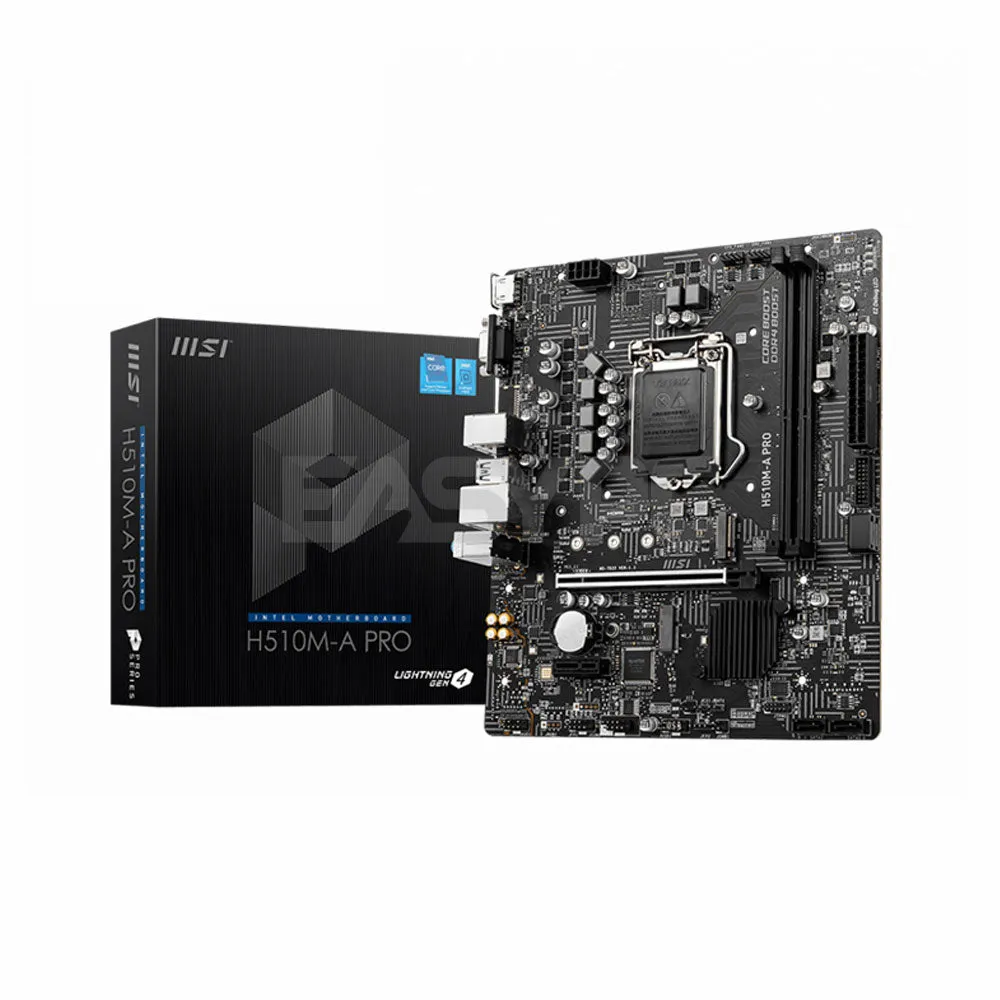

MSI H510M-A Pro Socket LGA 1200 Ddr4 Gaming Motherboard

·       CPU (MAX SUPPORT): i9

·       SOCKET:    1200

·       CHIPSET: Intel® H510 Chipset

·       DDR4 MEMORY: 3200(MAX) / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz

·       MEMORY CHANNEL:    Dual

·       DIMM SLOTS: 2

·       MAX MEMORY (GB): 64

·       PCI-E X16: 1

·       PCI-E GEN: Gen4

·       PCI-E X1: 1

·       SATAIII: 4

·       M.2 SLOT: 2

·       TPM (HEADER): 1

·       LAN: 1x Intel® I219V Gigabit LAN controller

·       USB 3.2 PORTS (FRONT): 2(Gen 1, Type A)

·       USB 3.2 PORTS (REAR): 2(Gen 1, Type A)

·       USB 2.0 PORTS (FRONT): 2

·       USB 2.0 PORTS (REAR): 4

·       SERIAL PORTS(FRONT): 1

·       AUDIO PORTS (REAR): Realtek® ALC897 Codec

·       VGA: 1

·       HDMI: 1

·       DIRECTX: 12

·       FORM FACTOR: Mirco-ATX

·       OPERATING SYSTEM: Support for Windows® 10 64-bit
