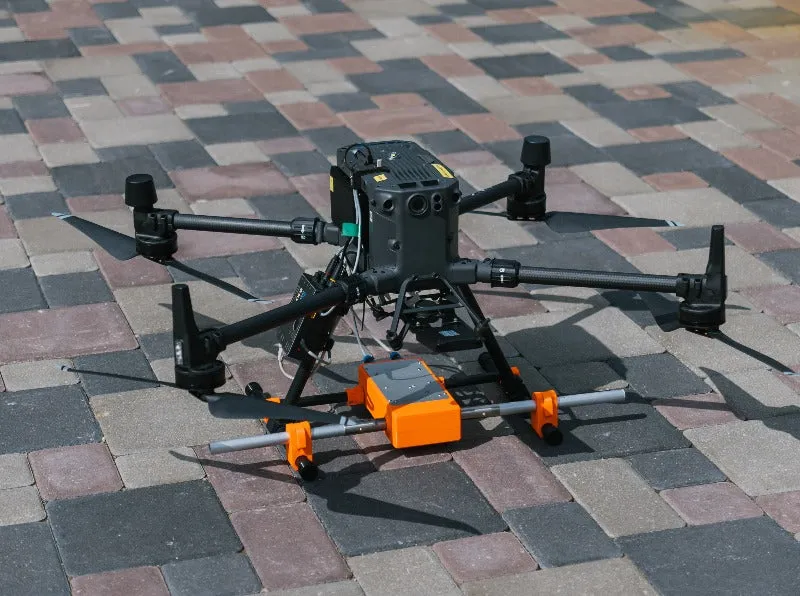

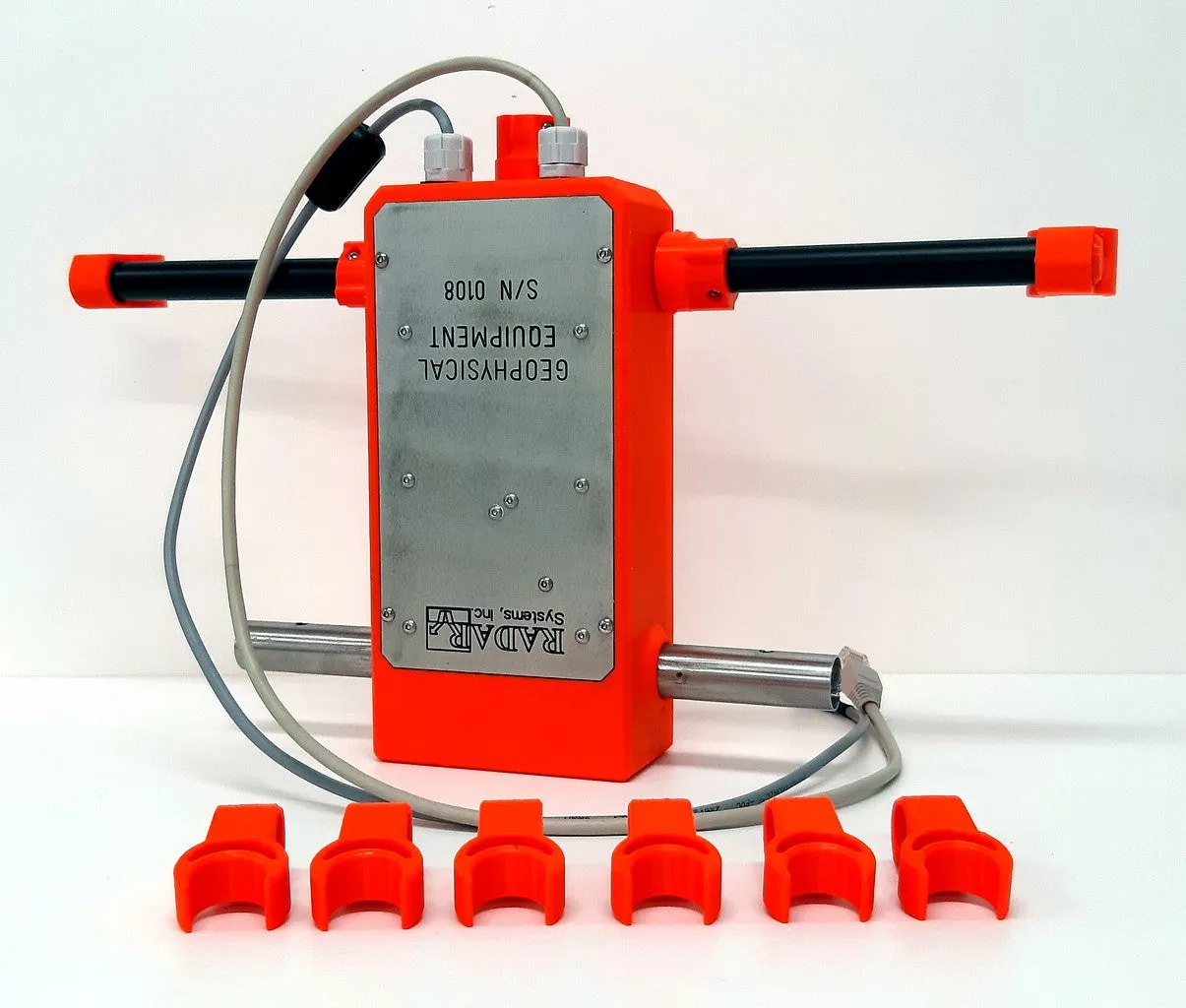

Extra-lightweight GPR system, suitable for medium-sized drones like DJI M300/M350 RTK.

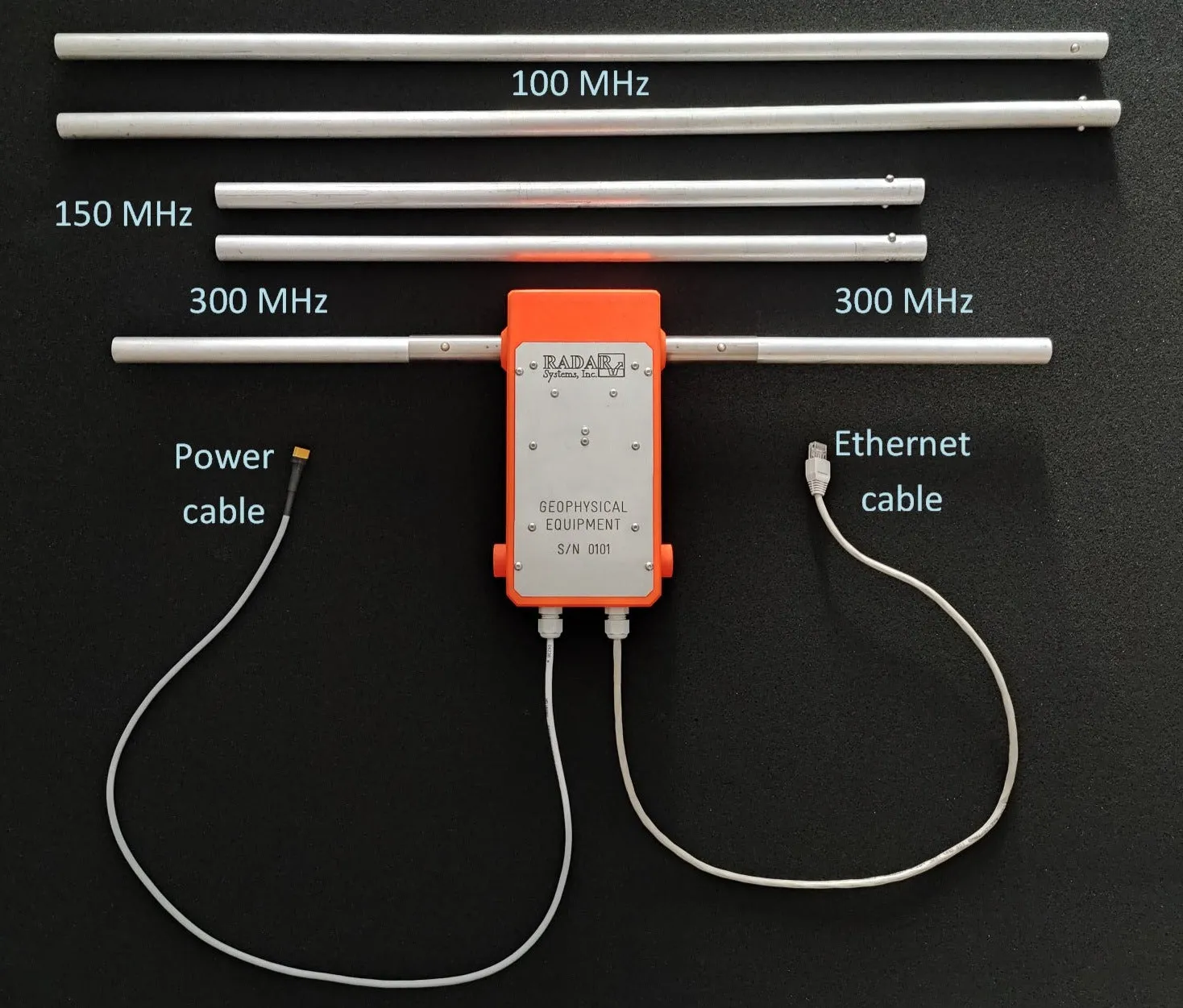

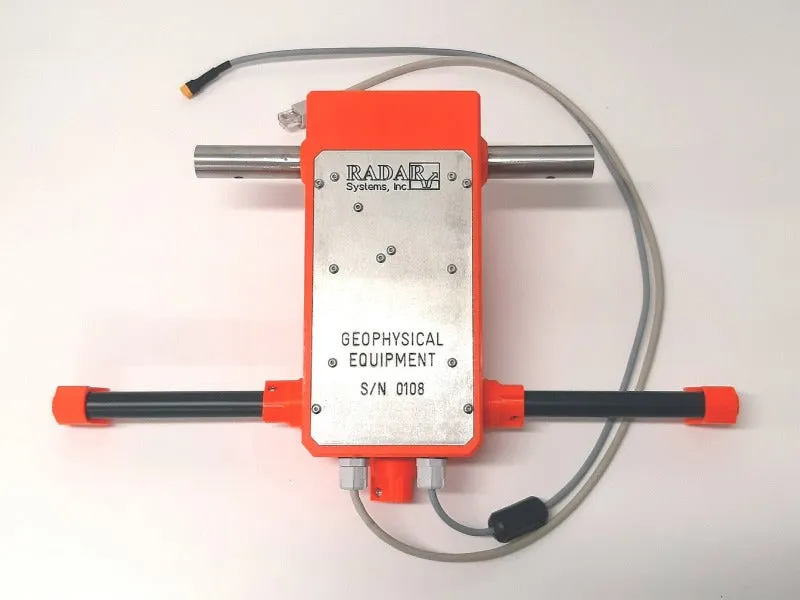

Zond Aero LF is extremely customizable GPR system in terms of available frequencies, it was tested with antennas in the range 50...400MHz making it most versatile system in our portfolio. By default, it comes with 3x sets of dipoles for the 300, 150, and 100 MHz. Dipoles for other frequencies are available by request OR you can even cut supplied dipoles to get required center frequency for your GPR!
.
Utilizes Real Time Sampling (RTS) with high hardware stacking, delivering high-resolution low-noise data.

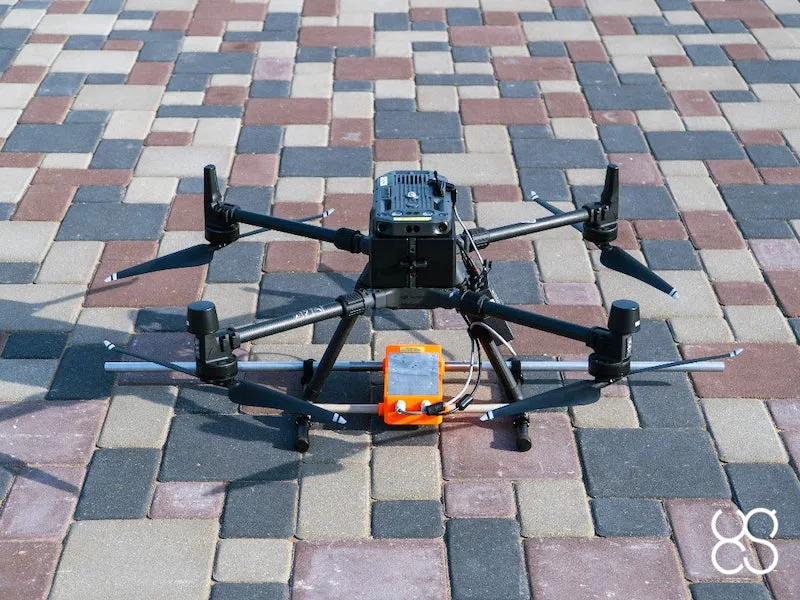

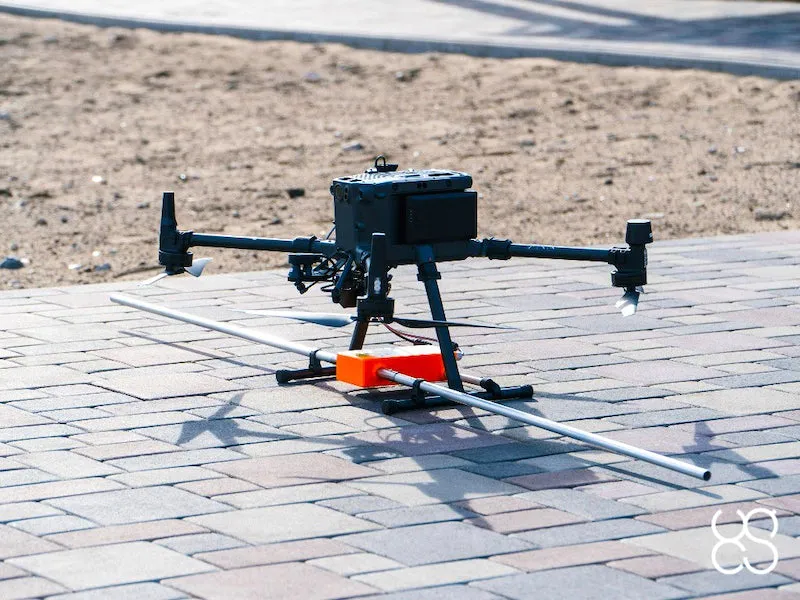

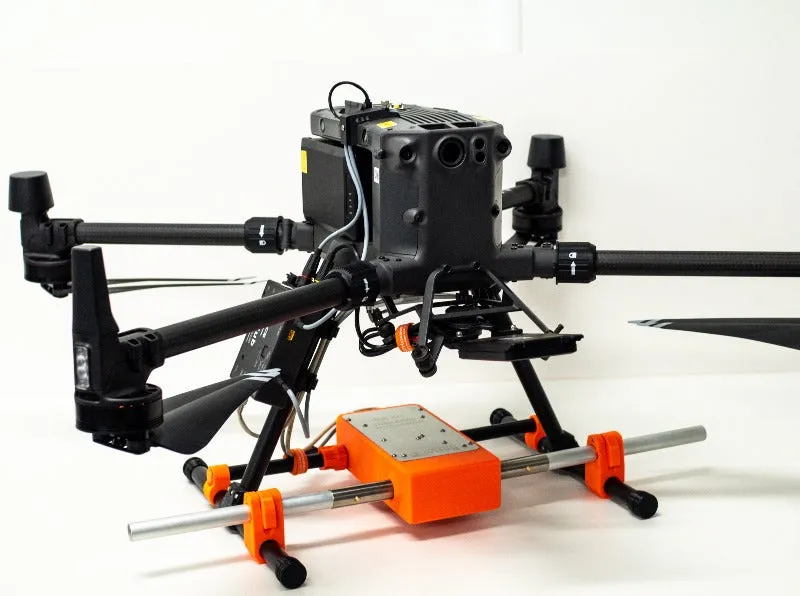

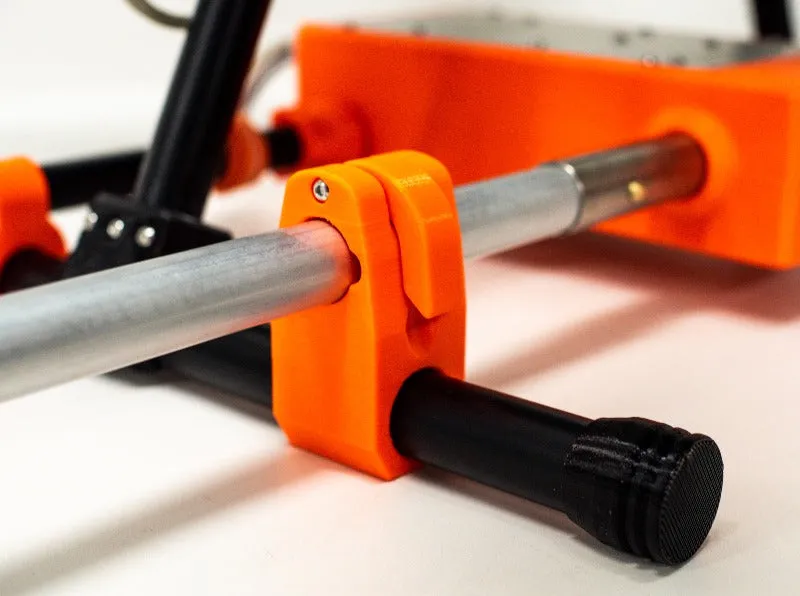

Includes a transportation box and mountings for the DJI M300/M350 RTK drone. Mounts for other types of drones are available upon request.
HS Code: 90158020 (meteorological, hydrological, geophysical instrument)
Please note that additional components and software must be ordered to use this GPR with drones. It is recommended to order a complete set. Please ask for the quote.
| Type | Single channel Ground Penetrating Radar system with unshielded dipole antenna |
| Center frequency | 100, 150, 300 MHz depending on used antenna Custom frequencies by request (any frequency 50...400 MHz) |
| Operating bandwidth | 50 – 200, 75 – 300, 150 – 600 MHz (-12 dB) |
| Samples | selectable 256 / 512 / 1024 / 2048 / 4096 / 8192 |
| Sample rate | up to 1,280,000 samples/second (depends on hardware stacking) |
| Scan rate | up to 2,500 scans/s (depends on hardware stacking) |
| Sample output | 32 bit digital raw data |
| Time range per sample | selectable 18 ps / 36 ps / 71 ps / 89 ps / 125 ps / 143 ps / 179 ps / 250 ps / 357 ps / 500 ps / 625 ps / 714 ps / 1 ns / 1.25 ns / 2.5 ns |
| Depth | up to 12 meters in soil with relative dielectric permittivity equal to 5 and specific attenuation up to 5 dB/m. |
| Data format | Standard Geophysical SEGY Data Format (.sgy) with traces geotagging |
| DOCUMENTATION & DATA SETS | |
| Data Sheet | |
| User Manual | |
| Data Samples | |
| ENVIRONMENTAL | |
| Temperature | -20°C to 60°C internal temperature |
| Humidity | 96% non-condensing |
| Ingress protection | IP68 in a protective box (used for transportation) IP52 in airborne variant |
| MECHANICAL | |
| Weight |
|
| BATTERY | |
| Airborne variant | Drone main battery is used to provide power to the GPR |

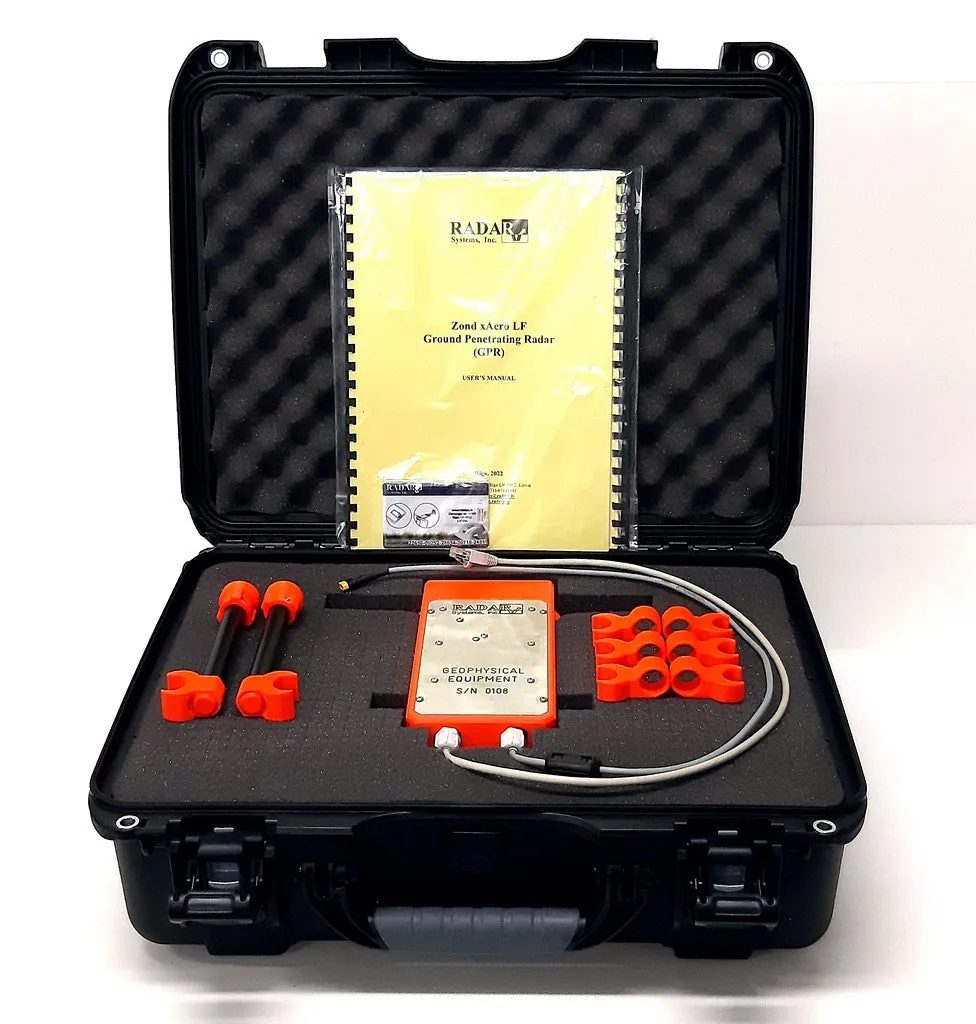

| WHAT’S IN THE KIT | |
| |
