Note

1. Please wear laser goggles during usage, avoid touching the laser directly to the eyes and skin.
2. In order to avoid unexpected accidents happens, please stay with the machine while the laser module is working.

Specifications

• Heatsink material: aluminum
• Recommend Focus Distance for Cutting: 40mm
• Electric Output power: 40W

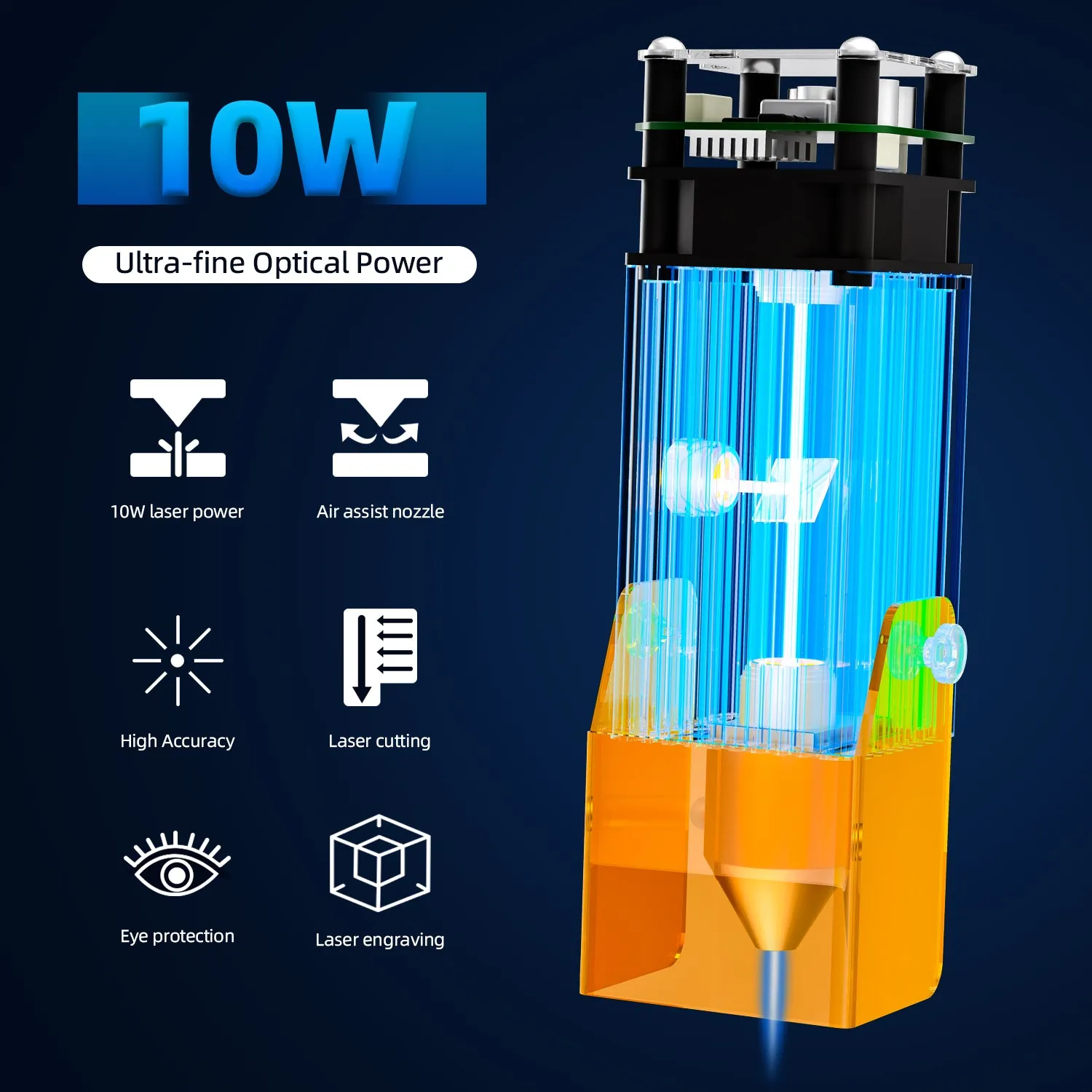

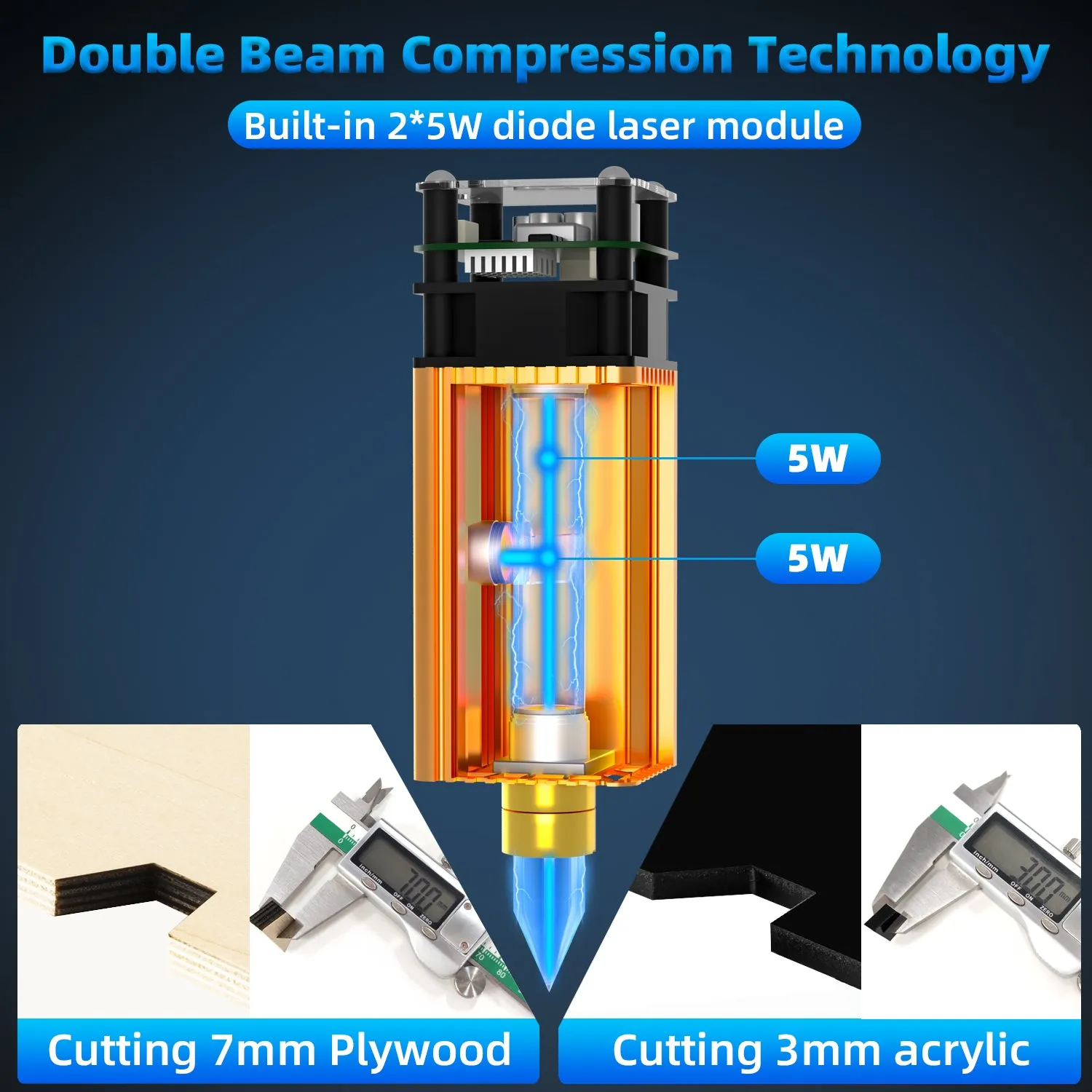

• Laser Output power: 10W
• Wave length: 445nm blue laser
• Voltage: 12V
• Current: 3.3A
• Beam shape: Dot (focus can not adjustable)
• Lift time: >10,000 hours
• Working temperature: -40~75℃
• Can engrave: MDF/ Balsa/ Paper / Wood/ Fabric/ Plastic/ Leather/ Plywood/ Foam Paper/ Anodized Aluminum
• Can not engrave: Metal/ Glass/ PCB/ Transparent Material

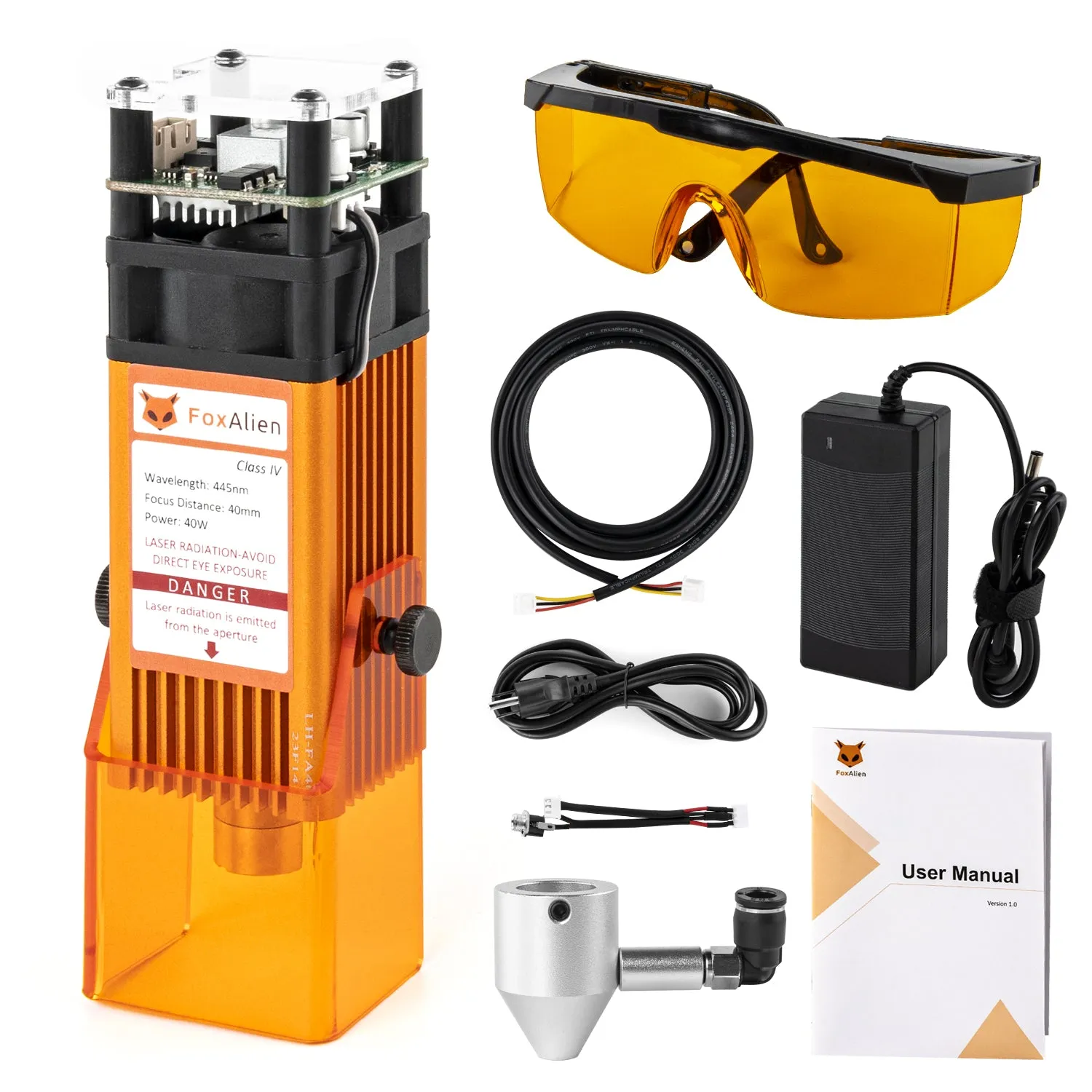

Package List

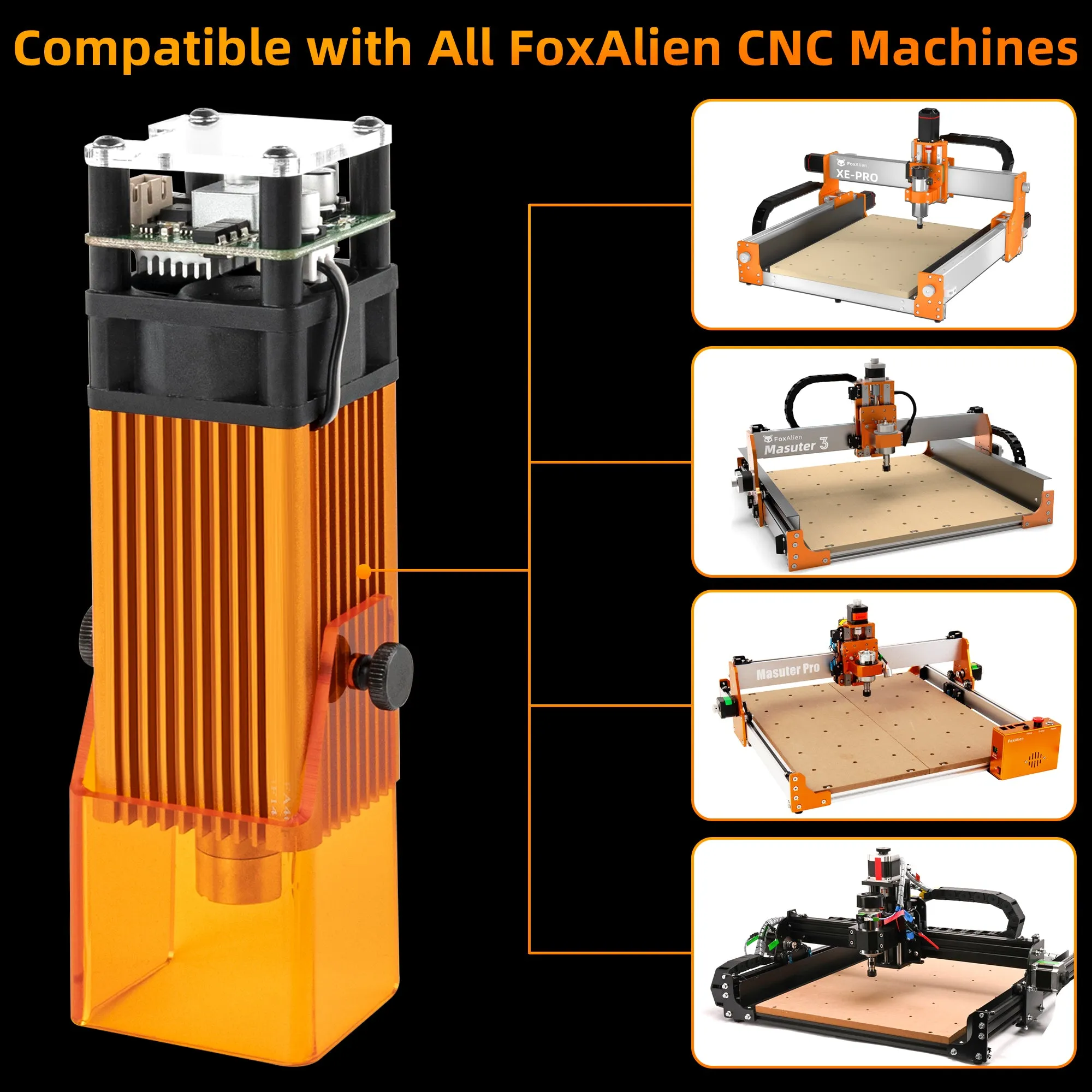

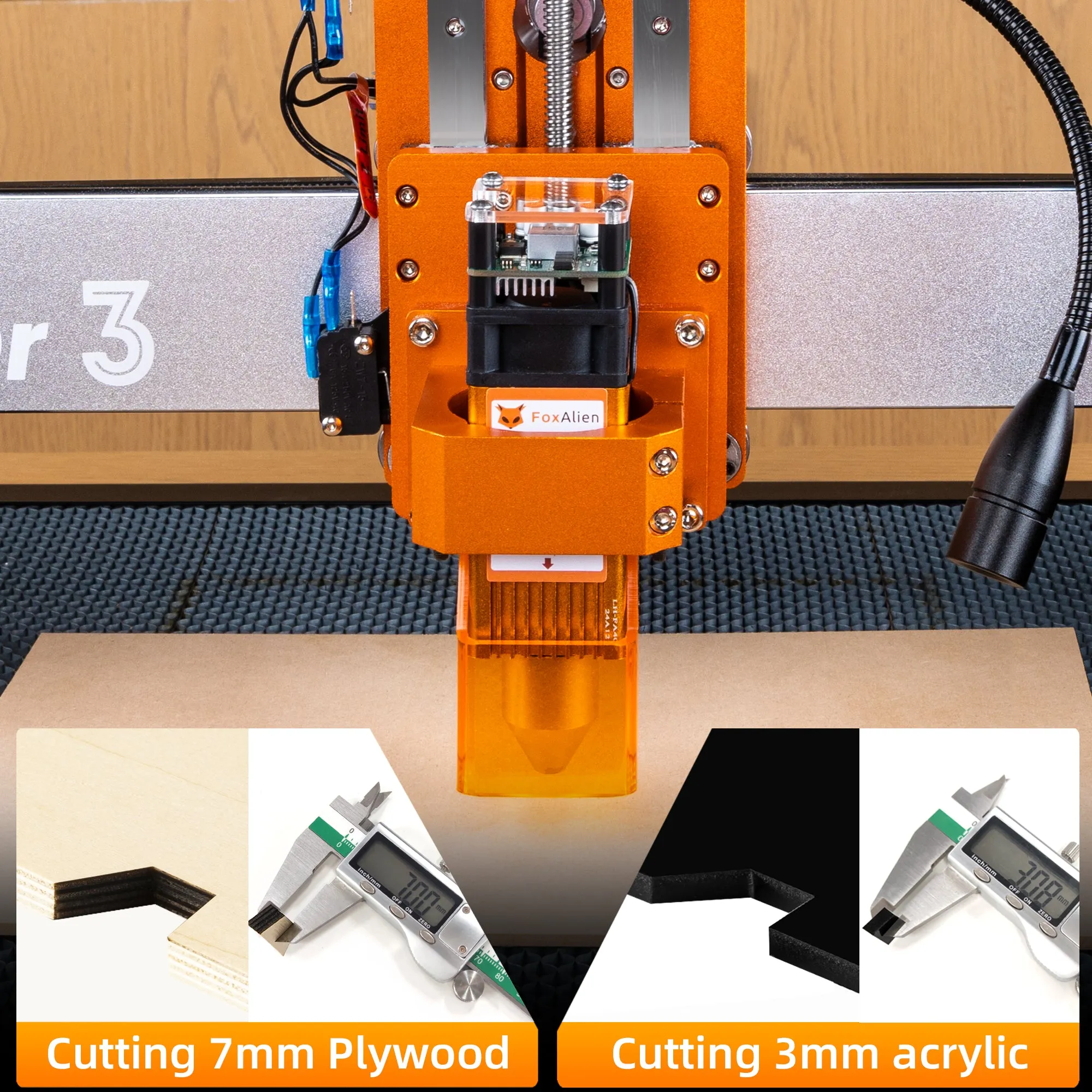

• 1 x FoxAlien Blue Laser Module(Compatible with LE-4040, LE-4040 PRO, Reizer, Reizer Mega Laser Engraver/ 3018-SE/4040-XE CNC Router)
• 1 x Goggles

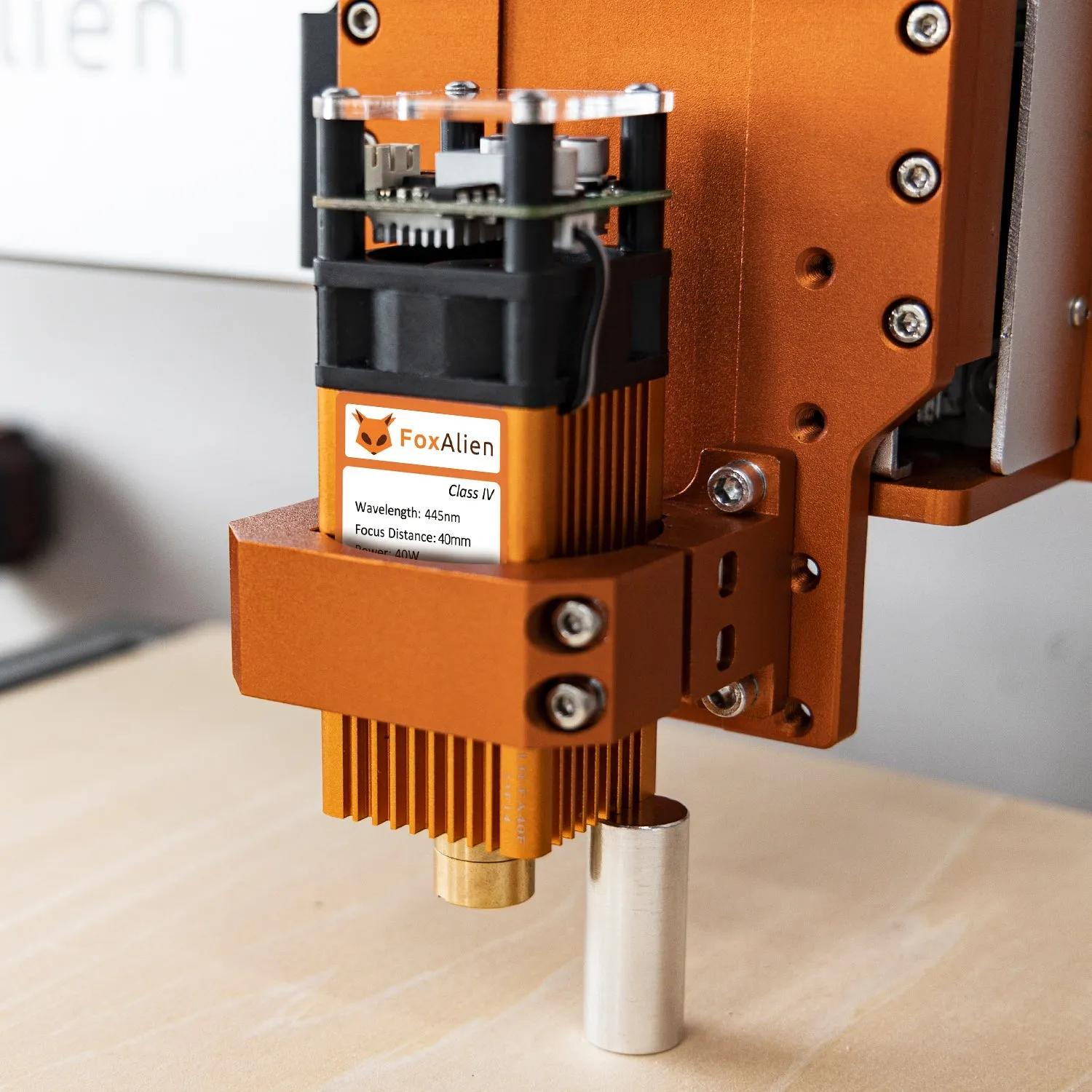

• Positioning Block 40mm
• Anti-Laser Shield
• Adapter Cable
• Power Supply
