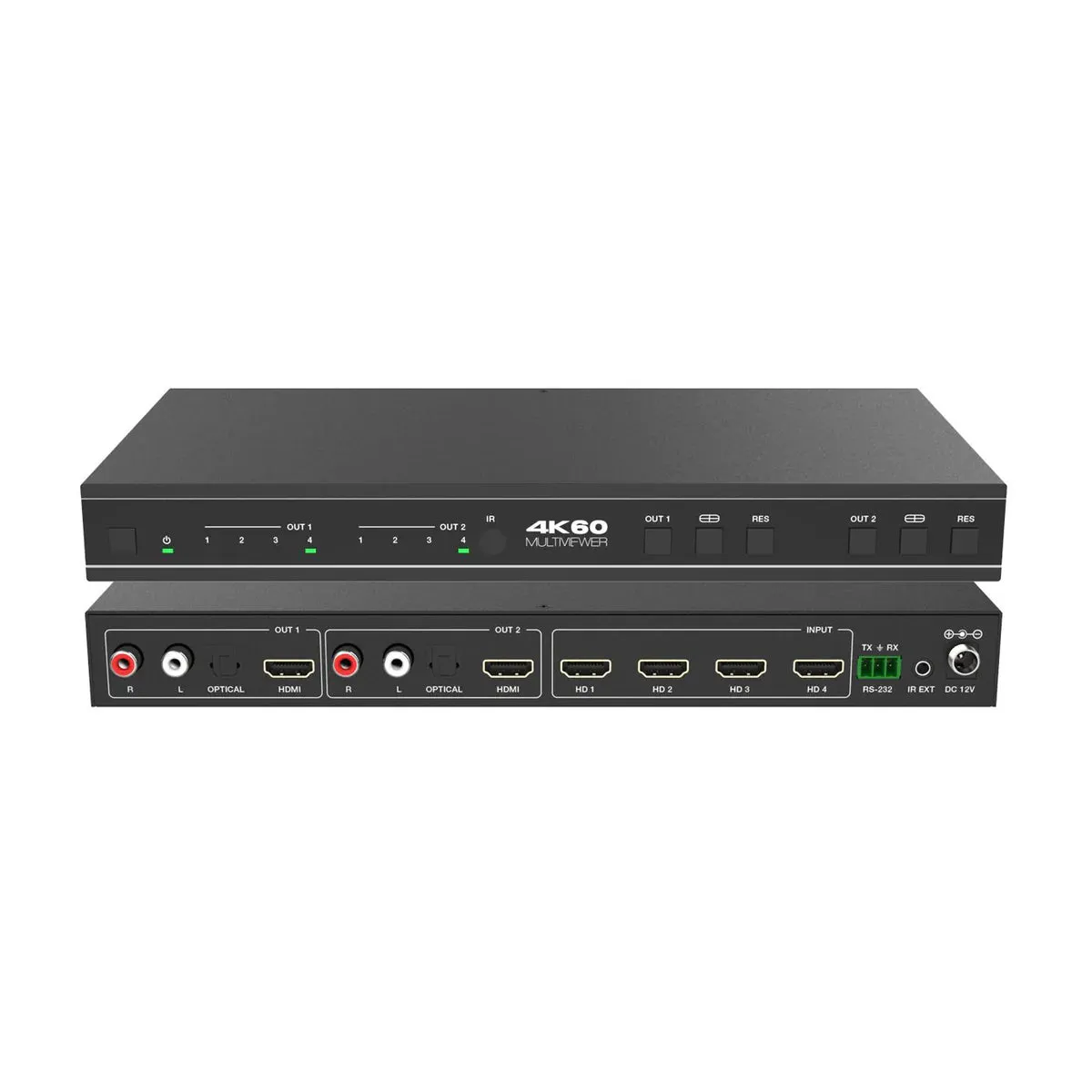

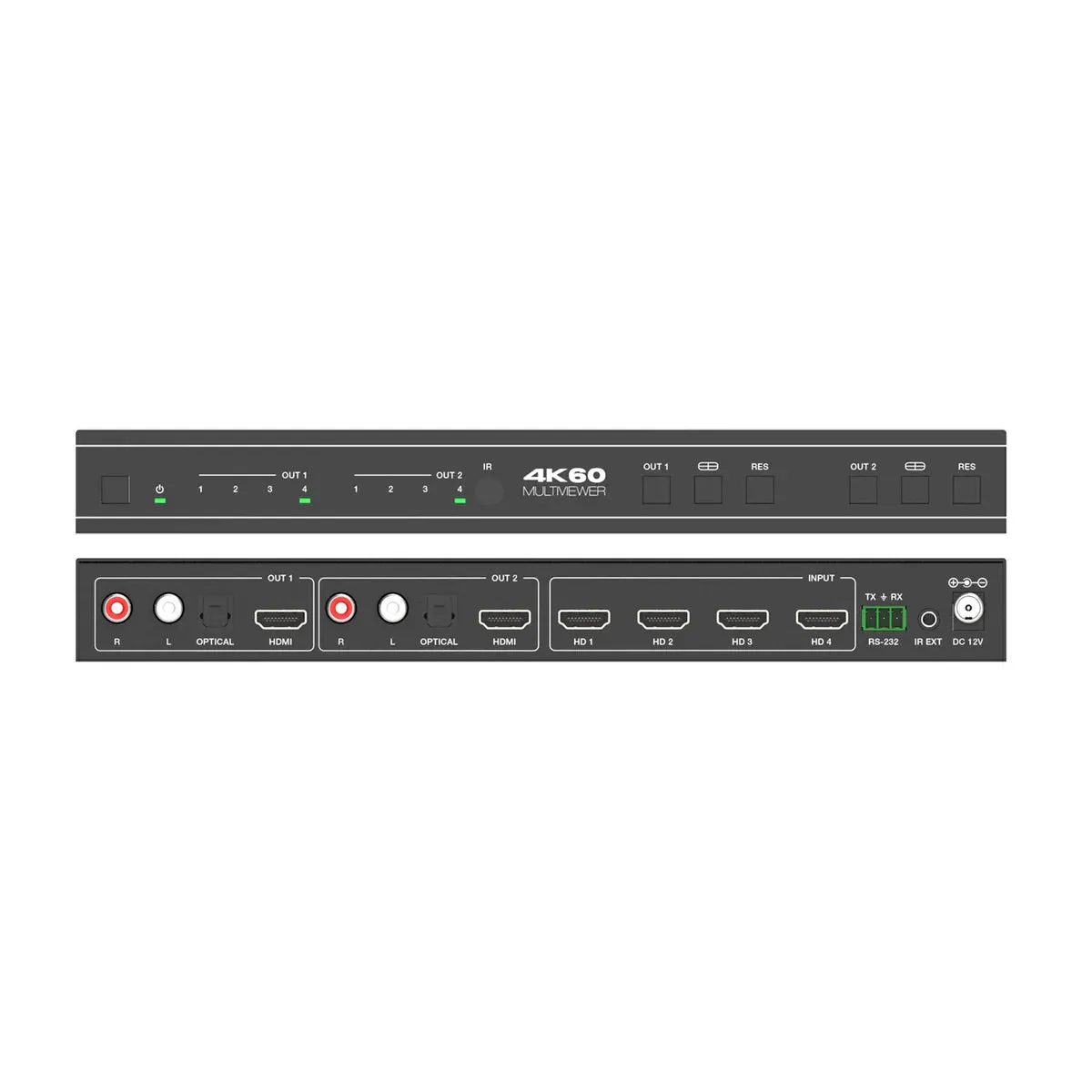

DVDO-Matrix-42SS-MV is a 4x2 multiviewer seamless matrix switcher that can route independently up to four HDMI sources to two separate displays.

It supports HDMI signals with resolutions up to 4K60 4:4:4 with an 18Gbps bandwidth.

Each HDMI output has separate analog and optical audio connections.

DVDO-Matrix-42SS-MV offers 8 different display modes for each output ranging from a single view mode to different multiview modes allowing 2, 3 or all 4 sources to be displayed on the same screen.

Specifications

•  HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
•  18Gbps uncompressed bandwidth, input and output resolution up to 4K2K@60 4:4:4
•  HDMI audio formats support LPCM, DD , DTS, Dolby TrueHD, DTS HD-master pass-through
•  Seamless switching between inputs
•  Combined multiple images independent layouts to display on two displays
•  Up to 8 display modes: Single, PIP, PBP(1), PBP(2), Triple(1), Triple(2), Quad(1), Quad(2)
•  Audio de-embedding via analog and optical fiber audio ports
•  Control via front panel buttons, IR remote, OSD menu navigation, controller software and RS-232
•  Each output supports scaling function
•  Support independent audio selection
•  Advanced EDID management
