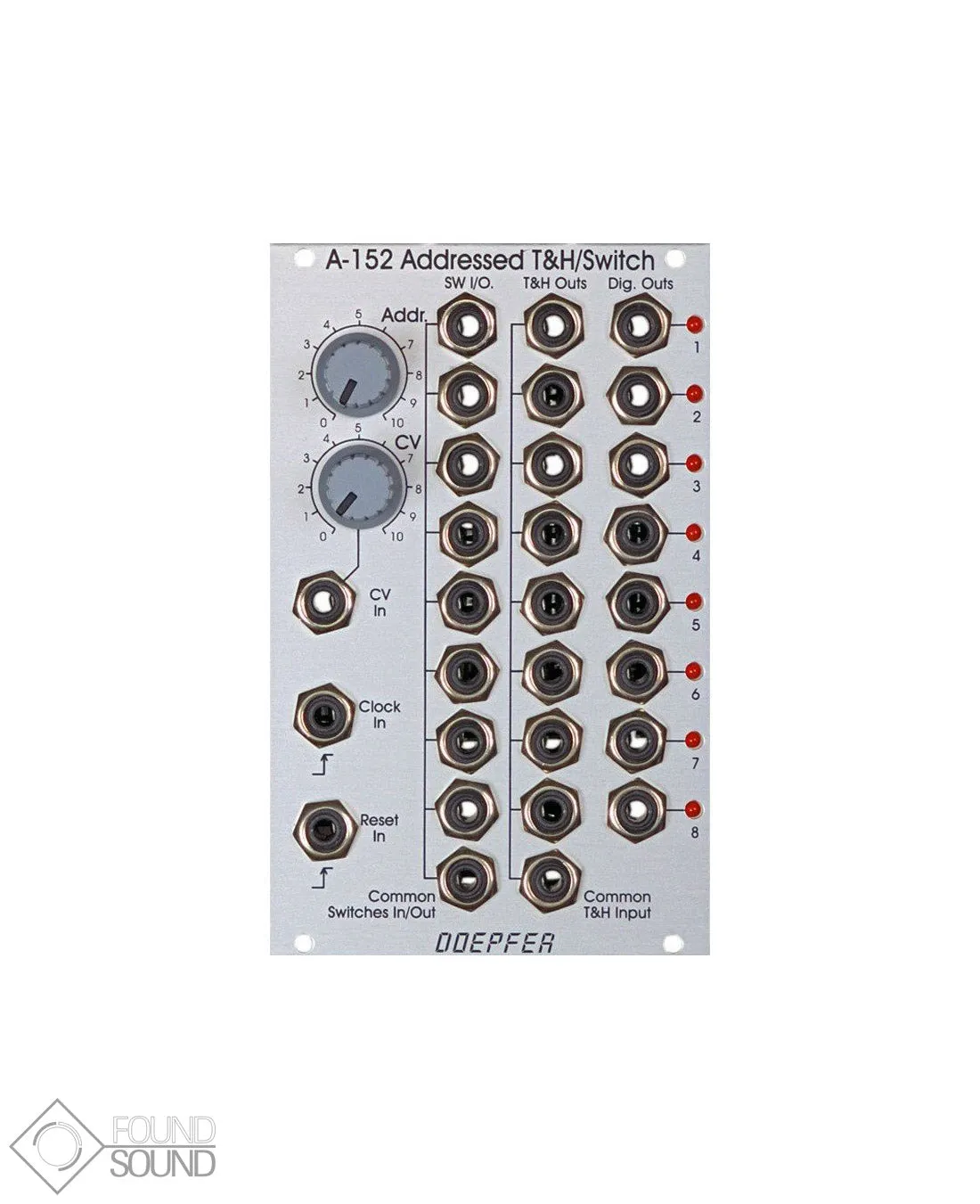

This module is comprised of three sections: a bidirectional multiplexer, 8 track and holds, and eight digital outputs. The module is capable of behaving as a sequential switch, audio router, shift register, S&H, and more. Each digital output only emits voltage when its output stage is addressed, meaning the module can be used as a gate sequencer. The T&H submodule section functions like a combination of a shift register and signal router and the multiplexer acts as an 8:1 switch, or as a 1:8 signal router.

Dimensions: Width: 16 HP, Depth: 45 mm Power requirements: 40 mA ( 12V) / -20 mA (-12V) Brand new with warranty.

Video:

Product Specs

• Item Number: 7629
• Make:
• Model:
• Condition:
• Finish: Silver
• Categories: ⇒
• Function:
• Made In: Germany
• MPN: A-152
• EAN: 4250711115203
• Modular Grid: Eurorack
• Dimensions*: 16 HP 45 mm deep
• Power*: 40 mA 12V 20 mA -12V 0 mA 5V

* User contributed details
