D800-Dante A-Net Distributors

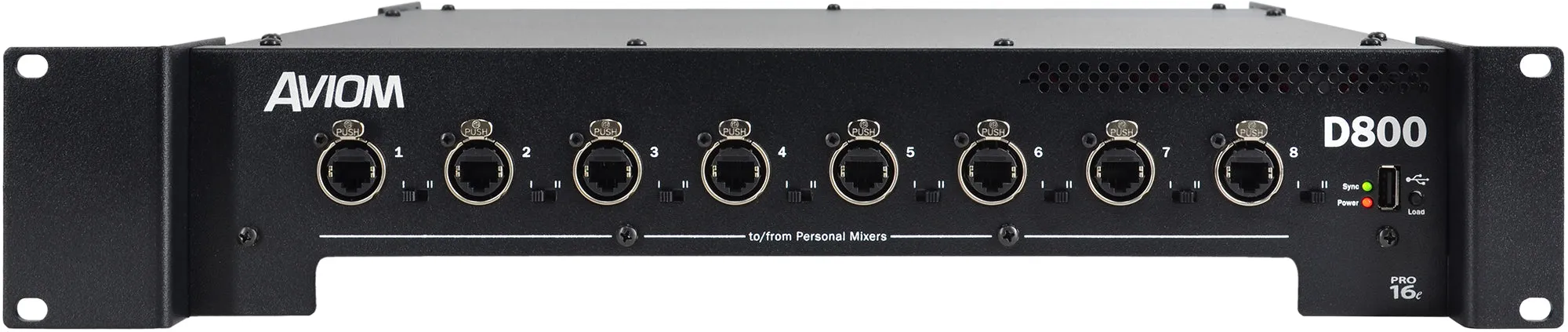

The D800 and D800-Dante A-Net Distributors provide the link between the input module or console card and the Personal Mixers, providing power and a copy of the digital audio stream to your Aviom Personal Mixers, utilizing standard Cat-5e cables.

Both units also integrate additional advanced options for delivering high-channel-count audio streams to your Personal Mixers, streamlining connections between A360s and transmitters for wireless in-ear monitors, and integrating the A360 Display iOS app.

The D800 and D800-Dante can be used with A-16II, A320, and A360 Personal Mixers in any combination.

Simple setup. Powerful performance.

On the most basic level, the D800 and the D800-Dante do an unglamorous but important job: get power and audio to your Personal Mixers. Set-up is a breeze, with no IP addressing, routing, or switch managing to worry about, so you can get set up and start mixing in no time, without a lot of hassle.

Get more channels to your mixers

Used in conjunction with the and Pro16 A-Net console cards (such as the ), the D800 and D800-Dante can combine up to four 16-channel A-Net streams for sending up to 64 channels directly from your digital console to your Aviom Personal Mixers. Mix channels can be individually selected for each A360 Personal Mixer using , allowing each musician to mix exactly the sources they need.

Connect directly to Dante

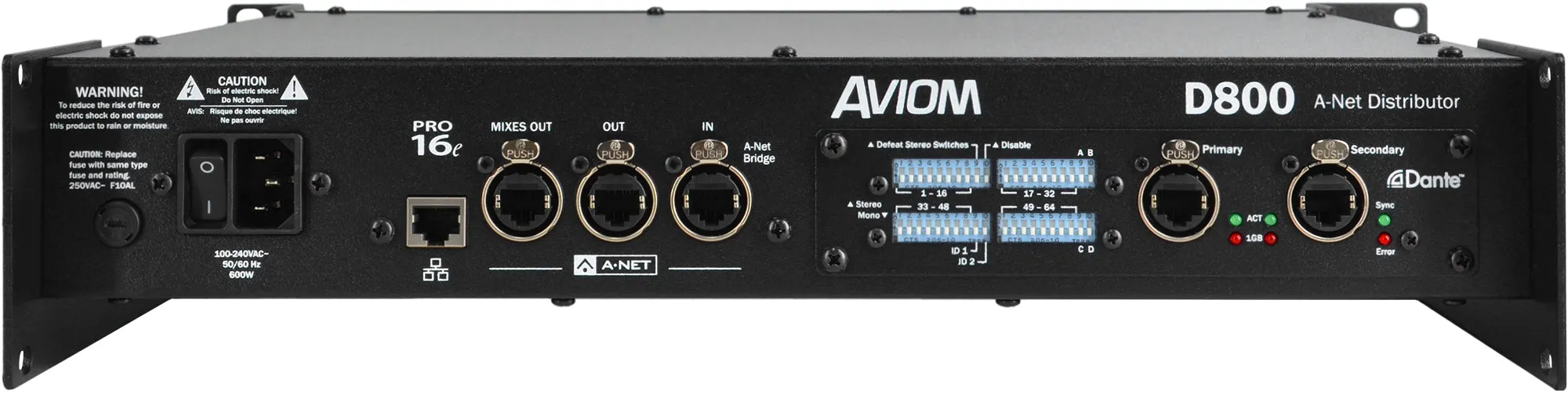

If your audio system includes a Dante™ audio network, the D800-Dante can interface directly to the network. Assign up to 64 channels from Dante to the D800-Dante for distribution to the Aviom Personal Mixers. Rear-panel DIP switches are used to set the stereo links for channels going to the Personal Mixers. Use the Mac/PC software application for channel routing.

Dante Sample Rates Up to 192kHz

With the D800-Dante, you can run your Dante network at 44.1/48kHz, 88.2/96kHz, or 176.4/192kHz. At higher sample rates, the D800-Dante converts the audio data to 48kHz for distribution to the Aviom Personal Mixers (and other A-Net devices).

Grow your system

If you need more than eight Personal Mixers, both the D800 and the D800-Dante include an A-Net Out port on the rear panel - perfect for sending the incoming audio stream (regardless of its original source) on to additional A-Net Distributors. about expanding your system.

Precision Engineered for Reliability

From the innovative power supply sub-system to the mechanical design to the whisper-quiet thermal management, the D800 and D800-Dante are built to give you rock-solid performance you can count on.
