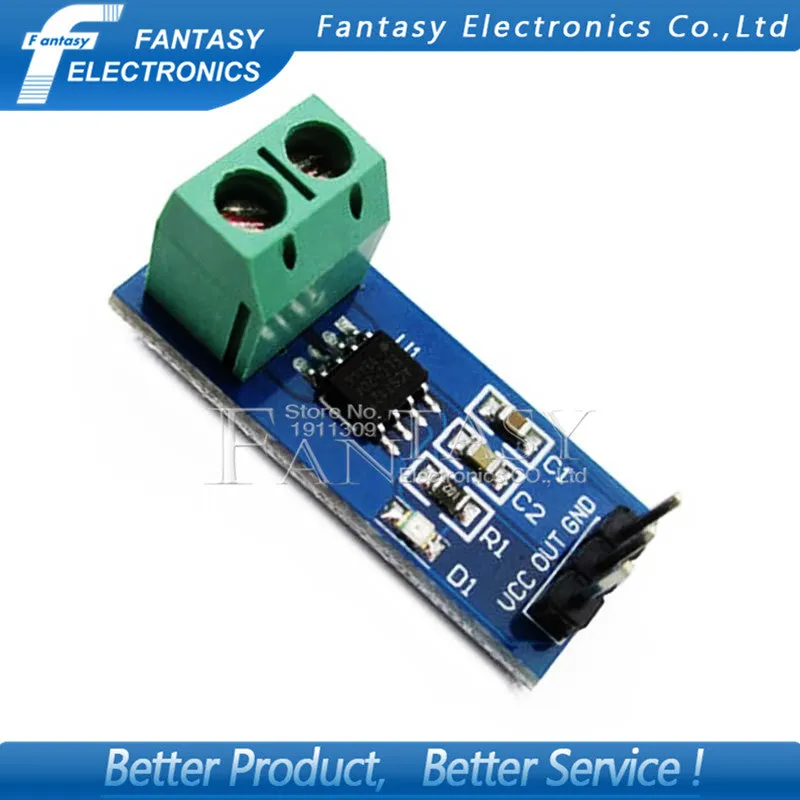

Free shipping 30A Range Current Sensor Module ACS712 ACS712ELC-30A Chip Module For Arduino

1, the current sensor chips: ACS712ELC-05B;

2, pin 5V power supply, on-board power indicator;

3, the module can be measured plus or minus 5 amps, corresponding to the analog output of 185 mV / A;

4, there is no the detection current through, the output voltage is VCC / 2;

5, PCB board size: 31 (mm) x13 (mm);

Note: ACS712 Hall detection principle, when you use to avoid magnetic field impact this!
