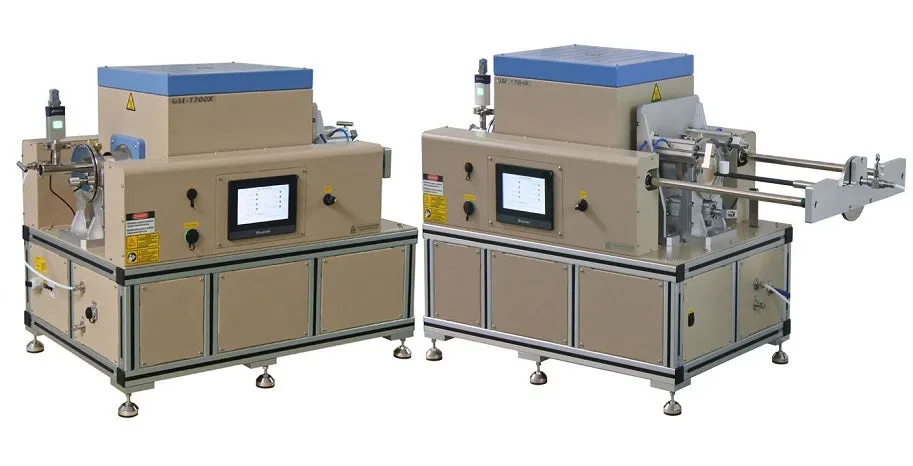

Furnace
|
- Double-layer steel structure with splittable cover
- High-purity Al2O3 fibrous insulation with Max. energy saving
- 170 mm length heating zone with Constant temperature zone 60 mm with /- 1°C
- PID programmable temperature controller with /- 1°C accuracy
- Max working temperature: 1700oC @ < 1 hr, and 1600ºC continuous
- One alumina tube () is included
- The pressure sensor is built in to control chamber pressure automatically
- One MFC is built in to control the gas flow rate automatically
|
|
Airtight Flanges
|
- Water-cold stainless steel flange with silicone O-ring and valves for airtight heat treatment
- One recirculating water chiller is included (Click Pic 1 for specs)

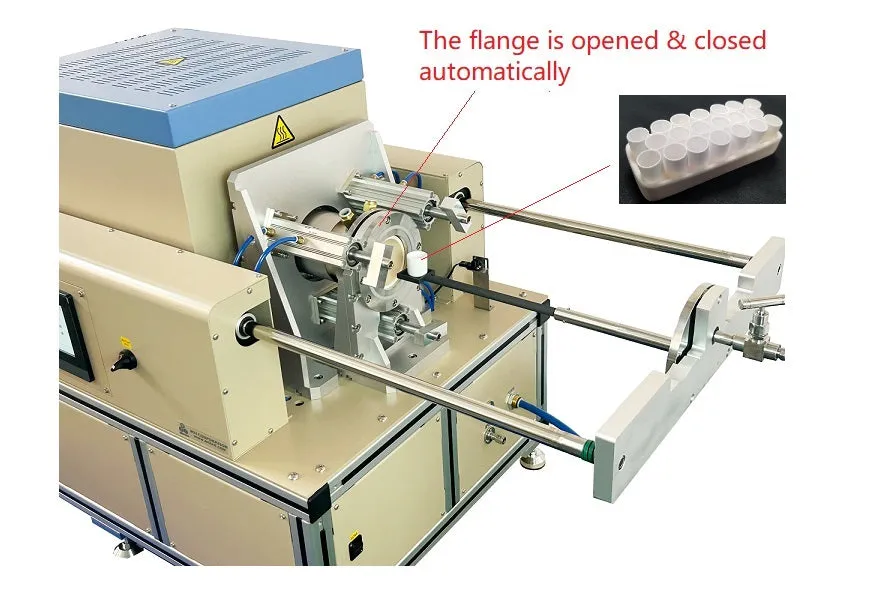

- The right side flange will be driven by an electric motor & compressive air to open or close
- One compressive pump is included ( click Pic. 2 for specs)
- A digital pressure sensor is built-in to control pressure from 1 Pa to 200 KPa automatically
- Max. The vacuum level can reach up to 10-4 torr, which is dependent on the vacuum pump.
- One rotary vacuum pump is included, which can reach a 10 Pa vacuum. ( Click Pic 2 for specs )

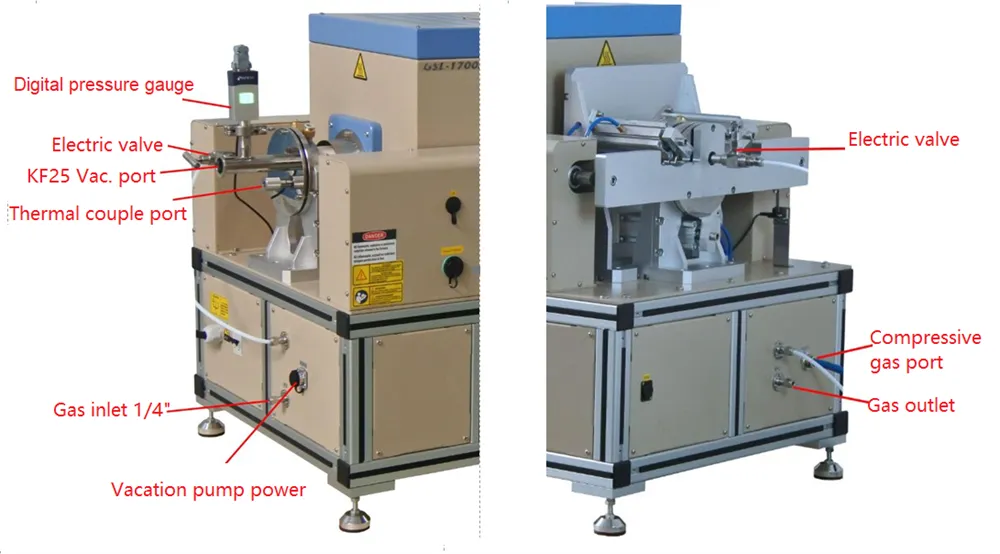

- The vacuum port and gas inlet & outlet are built-in ( Click Pic. left to see details)
-
Pic. 12Pic. 3
|
|
Sample Stage ( Holder )
|
- The sample stage is installed with a slidable flange on the right side

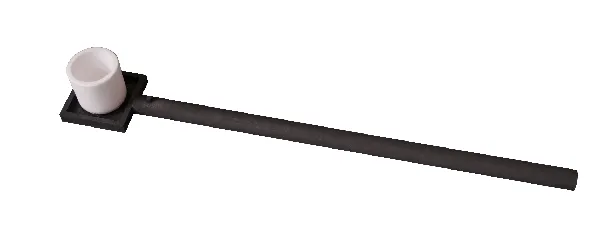

- One crucible holder ( made of alumina or graphite) is included to carry one 36 ml crucible ( Click Pic 1)
-
for multiple small crucibles are available upon request. ( Pic. 2) for high throughput
-
Pic. 1 Pic. 2
|
|
Control Panel & Software
|
- One 15" laptop computer with software is included
- PC will program all parameters, including
- Chamber pressure ( 1-200 KPa )
- Gas flow rate ( 0 - 2000ml/minute )
- Purging cycles ( 0 - 3 times )
- Temperature program ( heating rate, dwell time, and cooling rate ) up to 30 segments
- The flange closes/opens

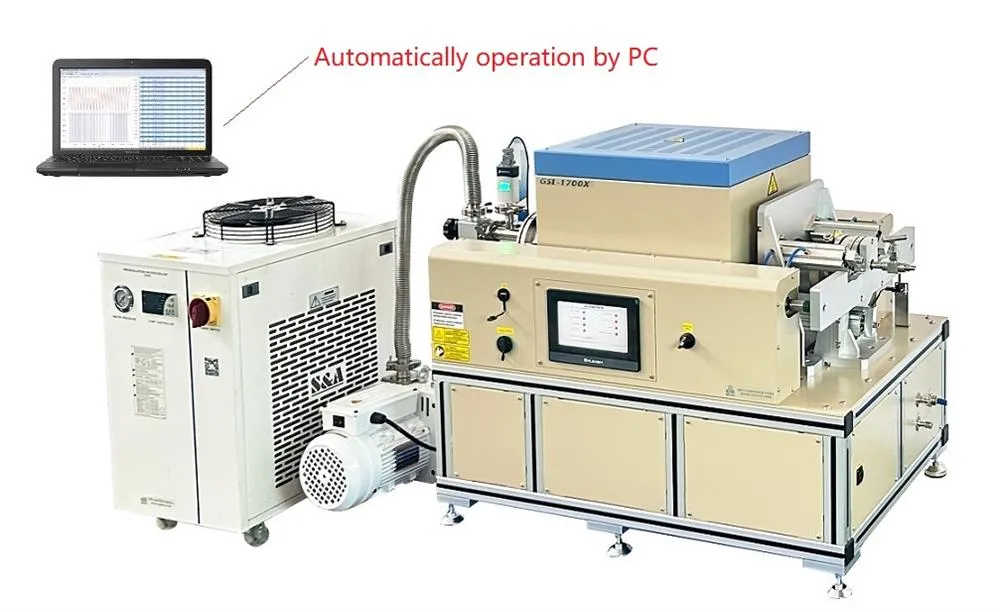

- The RJ45 communication port is installed on the front panel to connect to the PC or wireless router to achieve remote control ( PC and router are available upon request at the extra cost )
- Communication code is opened to the existing customer to connect the device to robots for unmanned operation
|
|
Automation Collaborative Robot
for sample loading
(optional)
|

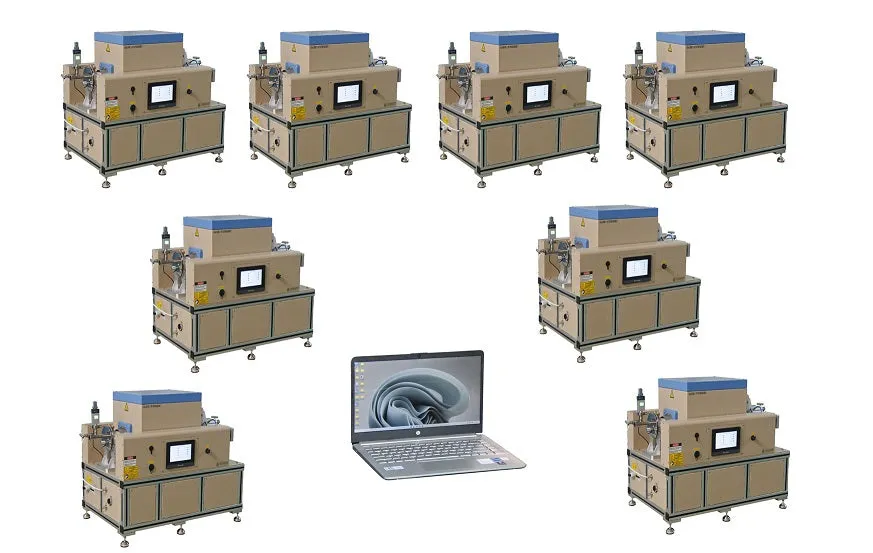

- Full automation with sample loading is optional via the integration with a robot arm.
.
|
|
Power requirement
|
- 220VAC /- 10%, ( 20A breaker ) single-phase , 50/60Hz
- 3KW,
- Power cable ( 3 meters ) is included without plug ( suggest connecting to power panel directly)
|
|
Compliance
|
NRTL or CSA certification is available upon request at an extra cost.
|
|
Dimensions
and weight
|
-
Click Pic to see details on Weight : ~200 Kg
|
